Product Description

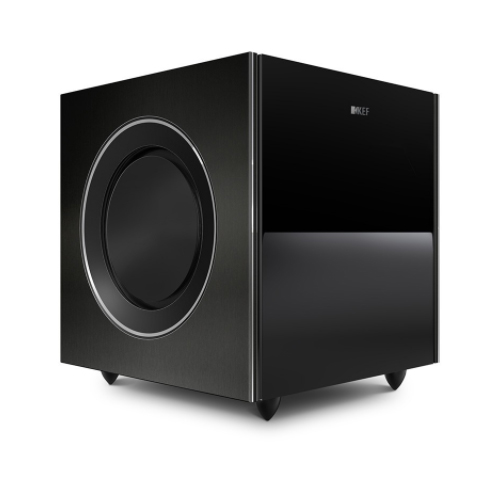

REFERENCE 8b
To experience the full impact of dramatic on-screen effects, bass definition and control are as important as extension. For power with accuracy, REFERENCE 8b sub boasts two 500W Class D amps, each driving a 228mm (9 inch) long-throw, ultra-low distortion driver, connected back-to-back in the heavily braced, acoustically inert cabinet. Only a truly great subwoofer could do justice to THE REFERENCE standards of home theatre, and it does.
| DESIGN | Force cancelled closed box |
|---|---|
| DRIVE UNITS | LF 2 x 225 mm (9in.) |
| FREQUENCY RANGE | Free Field: 18Hz (-6dB) |
| FREQUENCY RESPONSE | 24Hz at 90dB output in free-space mode (±3dB) |
| MAXIMUM OUTPUT | 110dB (peak sound pressure level at 1m 50Hz) |
| INPUTS | RCA phono sockets
Analog XLR socket Speaker level inputs |
| AMPLIFIER TYPE | 2 x 500 W Class D with switched mode power supply and DSP based control section |
| VARIABLE LOW PASS FILTER | Variable frequency: 40Hz to 160Hz
Variable slope: 12dB/oct, 18dB/oct, 24dB/oct LFE mode: 350Hz, 18dB/oct |
| LINK OUT | RCA phono socket |
| NET INTERNAL VOLUME | 23L |
| POWER REQUIREMENTS | 100V – 120V / 220V – 240V ~50/60Hz |
| POWER CONSUMPTION | 1000W |
| DIMENSIONS | H x W x D : 398 x 365 x 429 mm (15.7 x 14.4 x 16.8 in.) |
| WEIGHT | 35kg (77.2lbs.) |
| UNIT MEASUREMENT | Pair |
| FINISHES | Deep Piano Black |
