Product Description
The KEF Ci160ES Ci-E Series In-Wall Speaker delivers a truly immersive listening experience with its Uni-Q driver technology, ensuring consistent sound quality from any position in the room. Its weather-resistant construction and IP64 certification make it suitable for both indoor and outdoor installations, while its sleek design seamlessly blends into any decor. Whether for background music or foreground entertainment, the Ci160ES sets a new standard for high-performance in-wall speakers.
Unprecedented Value and Performance
Heard but not seen, KEF’s E series of architectural speakers is designed and manufactured to the same exacting standards as all KEF’s architectural offerings and features KEF’s famed Uni-Q driver technology.

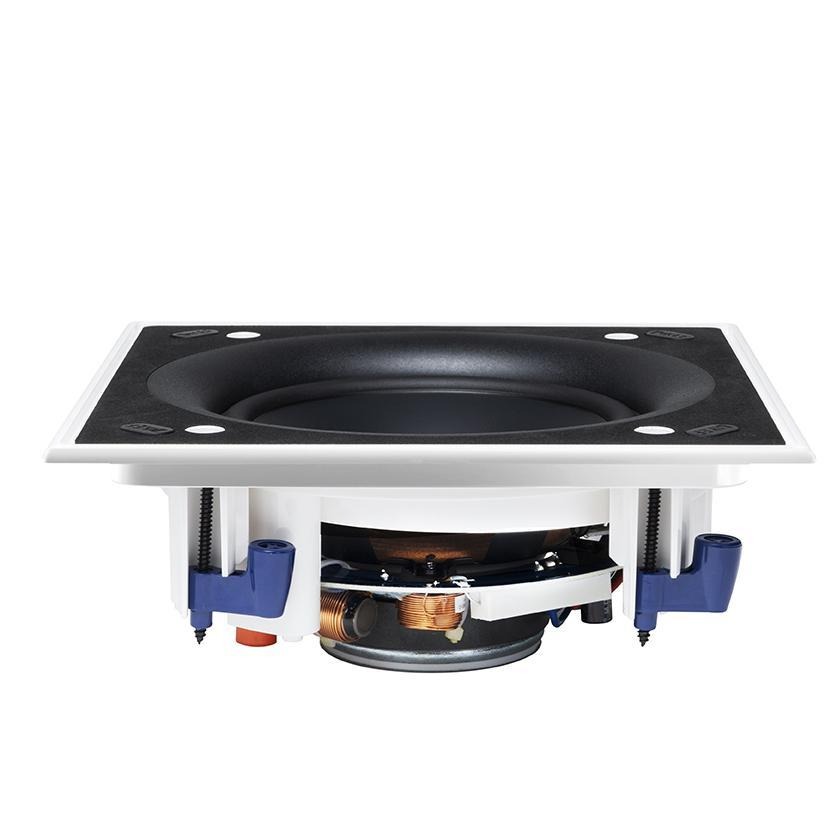

Ci160ES
Heard but not seen, with unprecedented value and performance, KEF’s Ci-E series of architectural speakers is designed and manufactured to the same exacting standards as all KEF’s architectural offerings and features KEF’s famed Uni-Q driver technology.

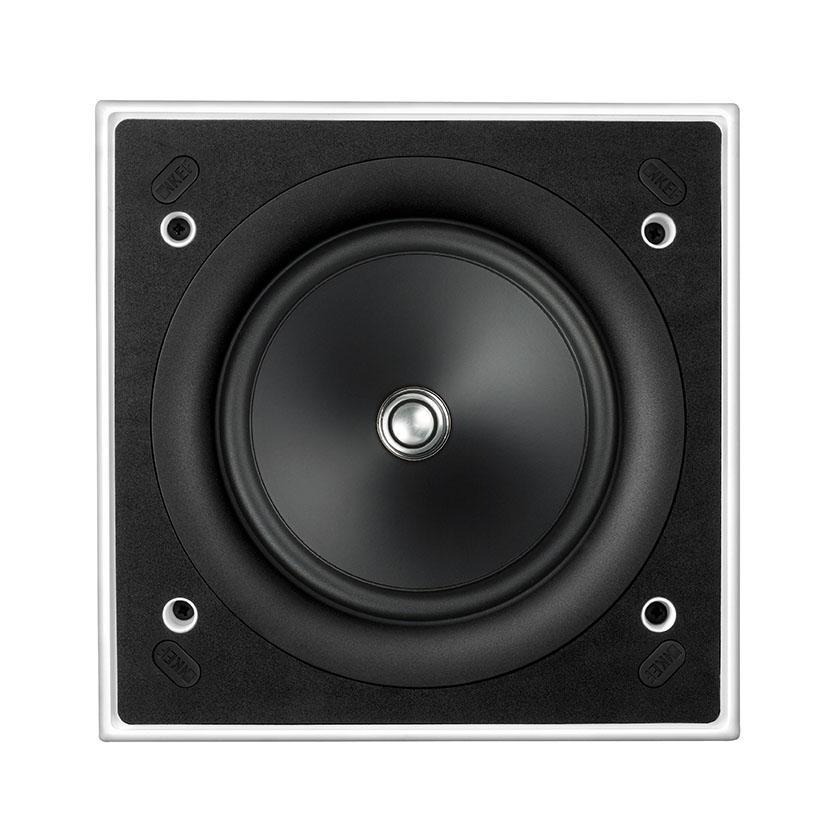

KEF’s Uni-Q driver enables the mid-range and tweeter to act as a single point source. This patented technology allows the listener to sit anywhere in the room and still enjoy KEF’s world-renowned sound and clarity without having to be positioned in the narrow “sweet-spot” found with conventional speaker designs.

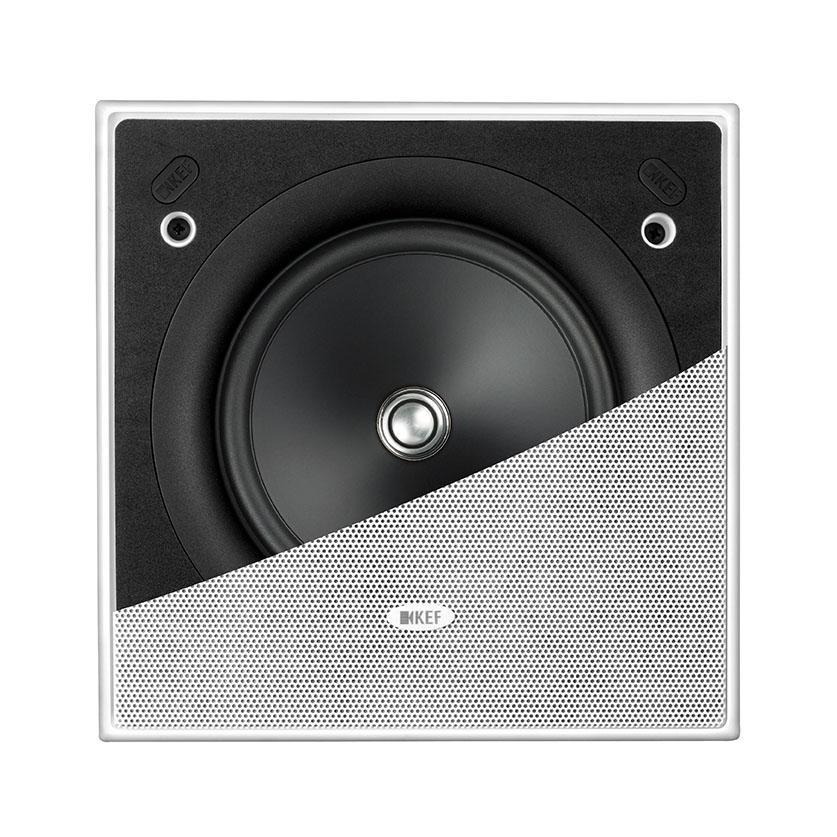

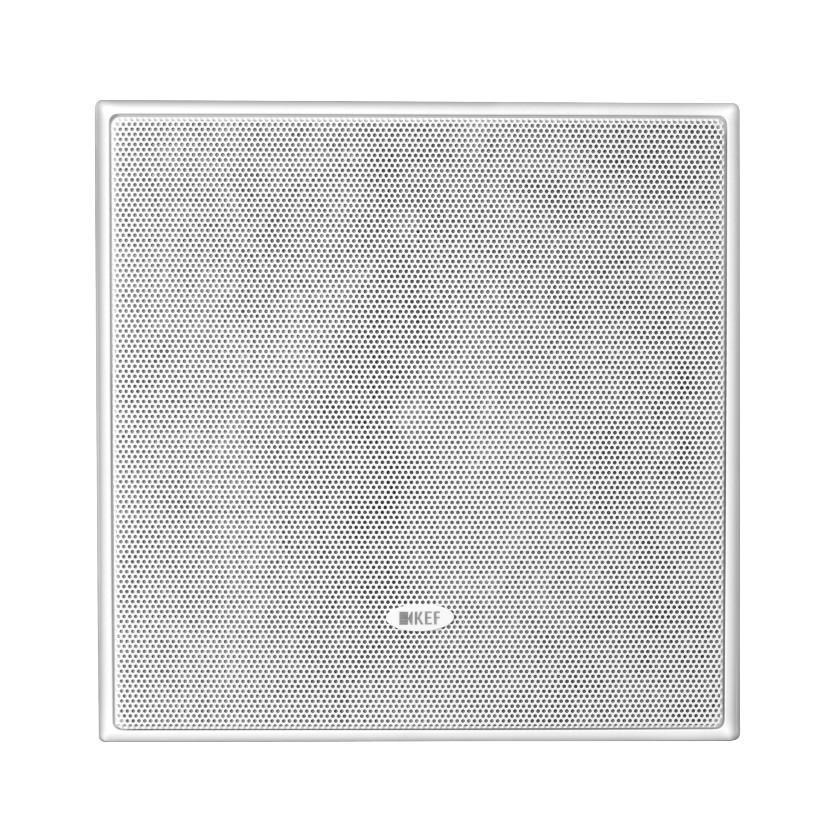

The Ci-E Series also features KEF’s Ultra-Thin Bezel (UTB) technology which offers the thinnest possible visible rim around the speaker assembly. The bezel and grill can be painted to match the interior décor.

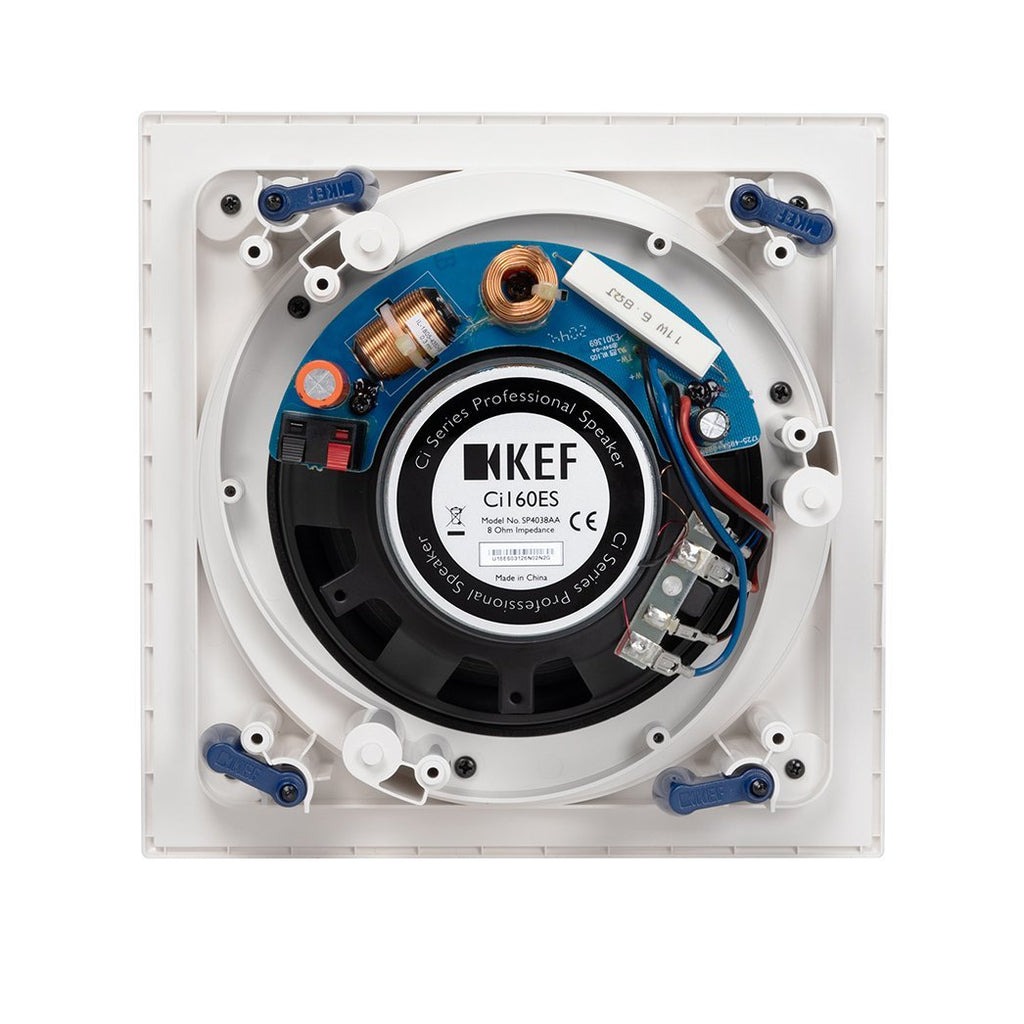

The speakers in the Ci-E Series, are manufactured to Weather Resistant Construction standards: The grilles are coated via a proprietary process, the speakers include moisture-resistant terminations and finish materials, and the plastics are UV protected, allowing you to safely use these speakers in applications such as bathroom and kitchen.
Specifications
Nomimal Impedance – 8 Ohms
Sensitivity – 89dB (2.83V/1m)
Frequency Response – 52Hz – 20kHz (+/-6dB) open-backed
Frequency Range – 46Hz – 45kHz (-10dB)
Nominal Coverage – 110° (Degrees)
Max SPL (dB) – 104dB
Crossover Frequencies – 2.8kHz
Drive Units – LF: 160mm (6.5in.) Uni-Q and HF: 16mm (0.6in.)
Recommended Amplifier Power – 10 – 100W
Recommended High-Pass Filter (Hz) – 50Hz
Product External Dimensions – 223 x 223 x 88.7mm (8.78 x 8.78 x 3.49in.)
Cut-Out Dimensions – 194 x 194 mm (7.64 x 7.64 in.)
Mounting Depth From Surface – 85.2mm (3.35in.)
Optional Rough In Frame – RIF160S
Optional Rear Enclosure – RNC160S
Net Weight – 1.4kg (3.1lbs)
Ideal Rear Volume (L) – 35L
Minimum Rear Volume (L) – 20L
Certification – IP64
