Product Description
Get the Klipsch Signature Horn-Loaded performance at an incredible value, the DS-250W LCR features dual 5.25” Polypropylene woofer and a 1” Silk Dome tweeter mated to a round Tractrix® horn for dynamic acoustic performance. Utilizing Klipsch Patent-Pending SkyHook™ Tool-Free Installation System, your install time is reduced by 75%.
Features:
- Dual 5.25” Polypropylene woofer
- 1” Silk Dome tweeter
- Patent-Pending SkyHook™ Tool-Free Installation System
- Bezel-Free Magnetic Grille
HORN-LOADED PERFORMANCE
Using the same Tractrix® horn technology and design principles
of our premium architectural and box speaker lines, the all new
Klipsch Designer series brings true Klipsch power and performance.
With dual 5.25” Polypropylene woofers and a 1” Silk Dome tweeter
mated to a round Tractrix® horn, the DS-250W LCR brings dynamic,
powerful, detailed Klipsch sound to your home theater system or
2-channel system.

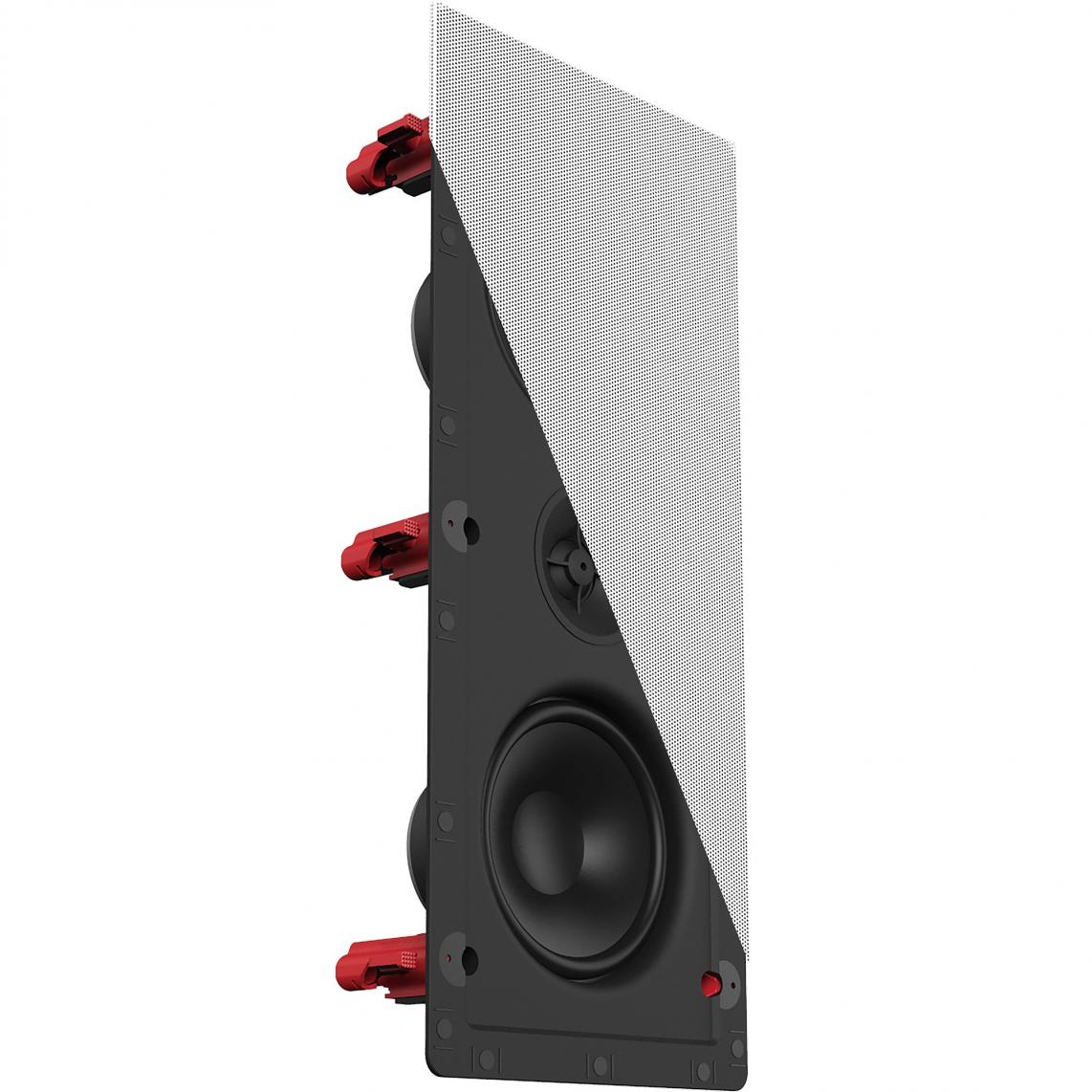

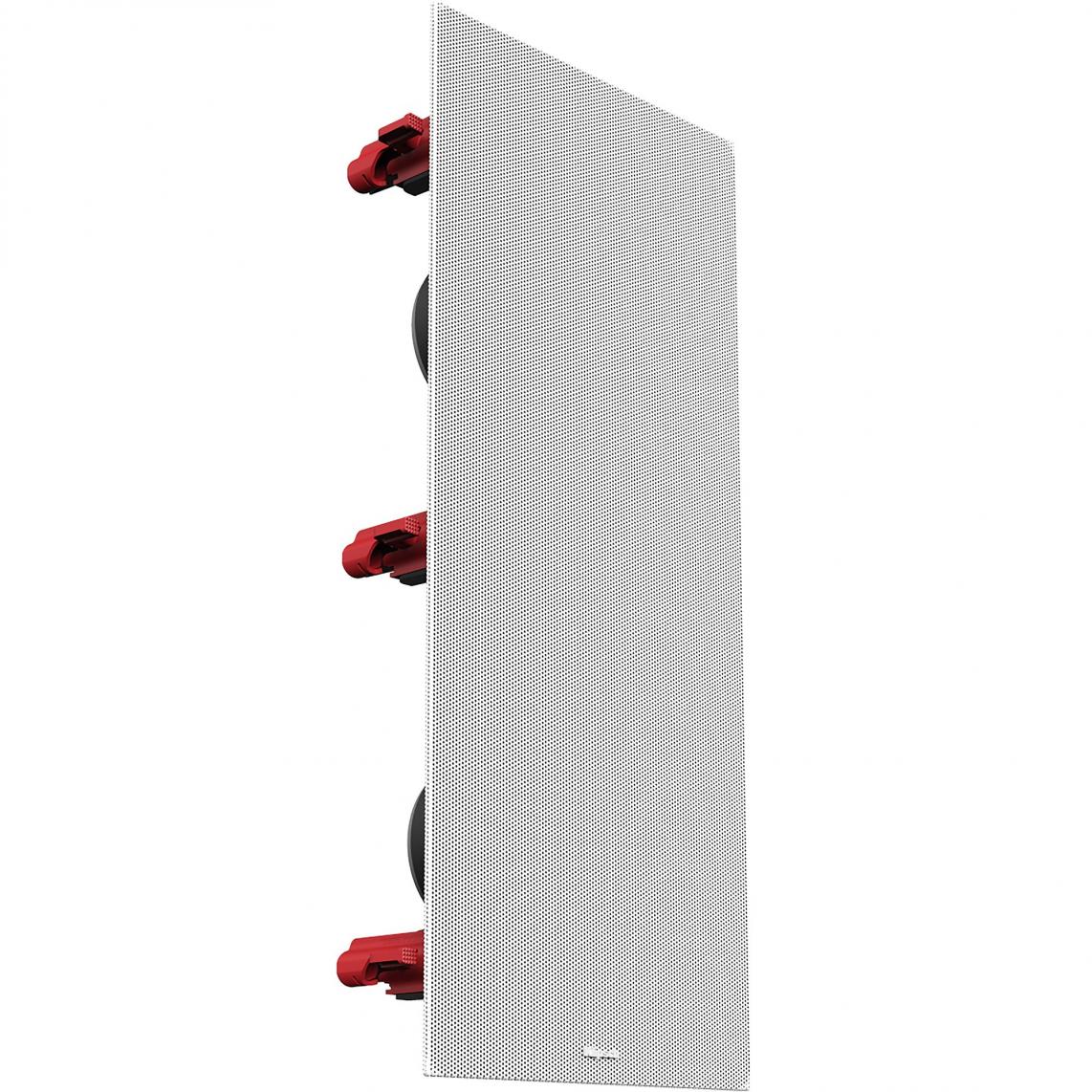

PATENT-PENDING SKYHOOK™ TOOL-FREE INSTALLATION SYSTEM
The exclusive installation system engages the dog legs automatically
when the speaker is inserted into the cutout hole with a preset
clamping force, eliminating the possibility of overtorquing. This fast,
easy installation system reduces install time by up to 75%.

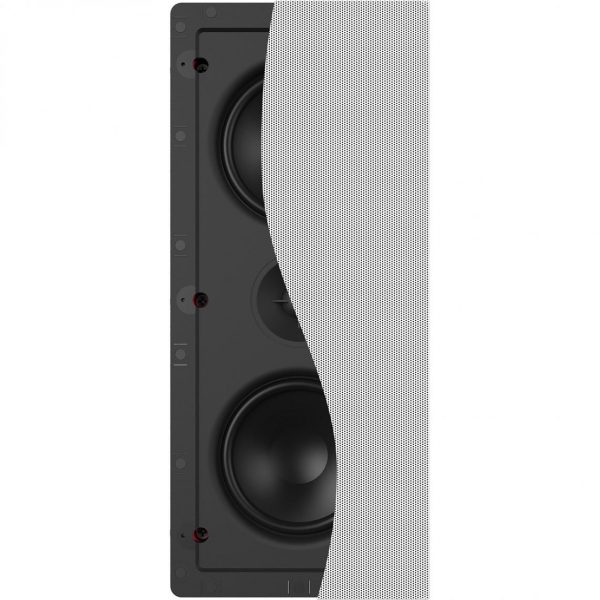

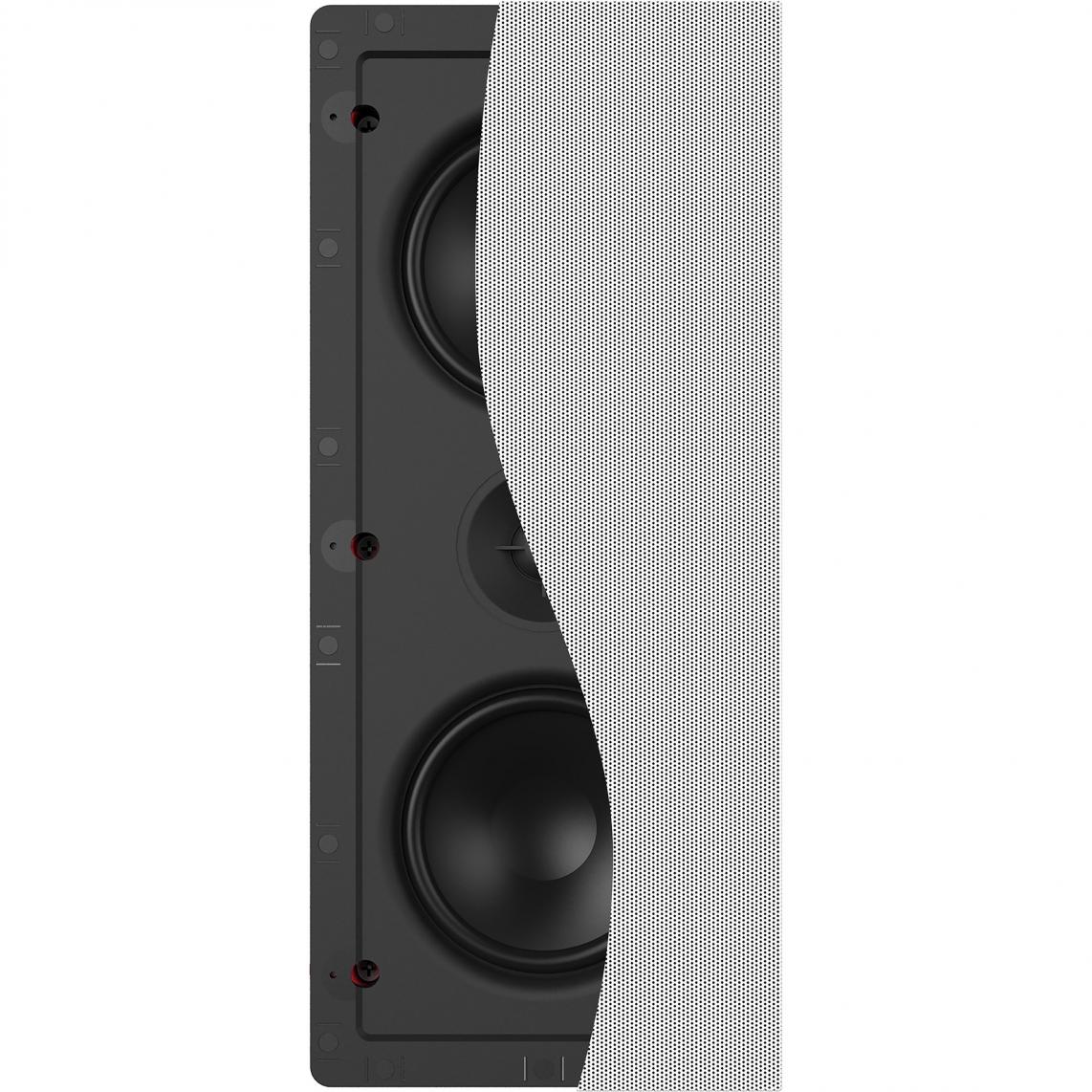

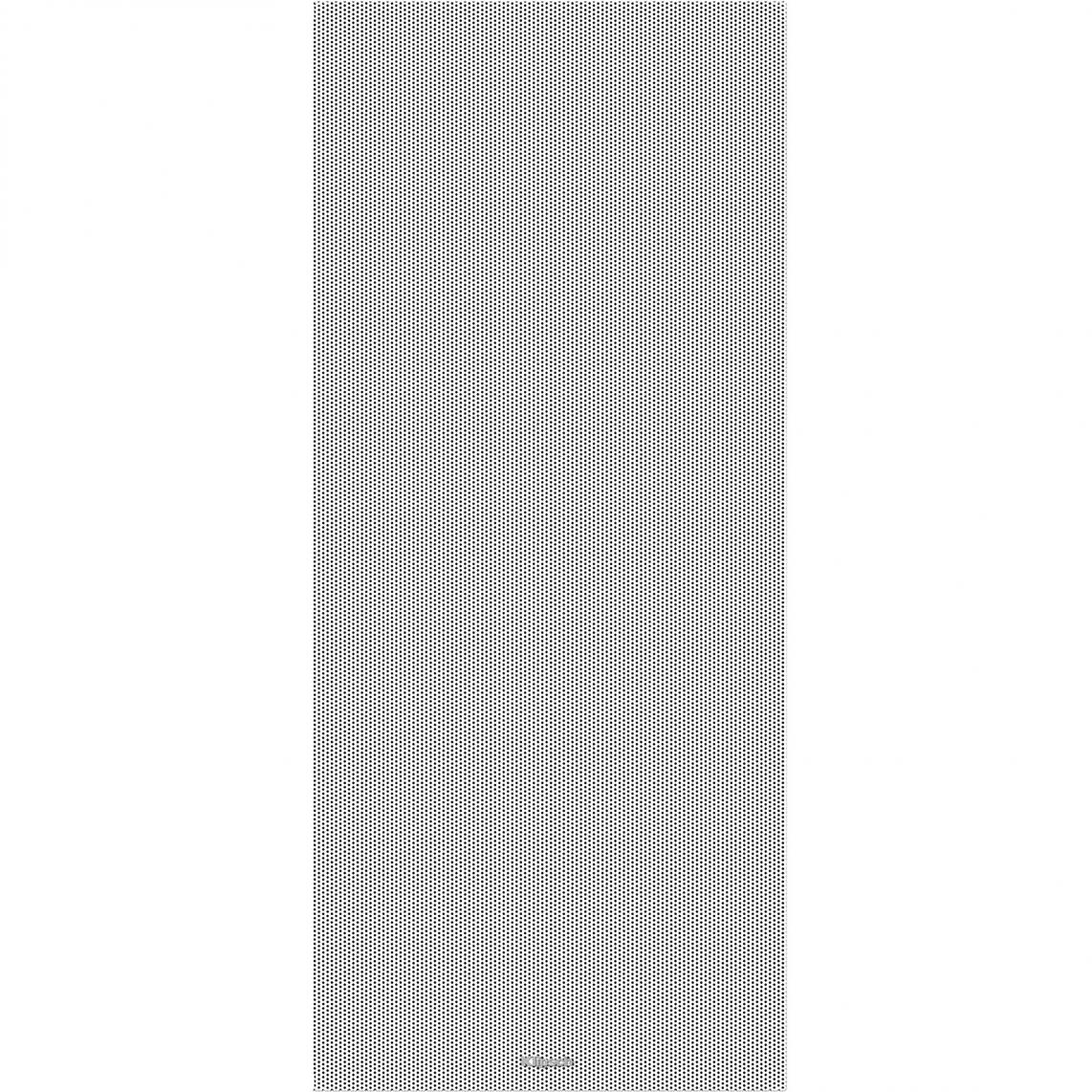

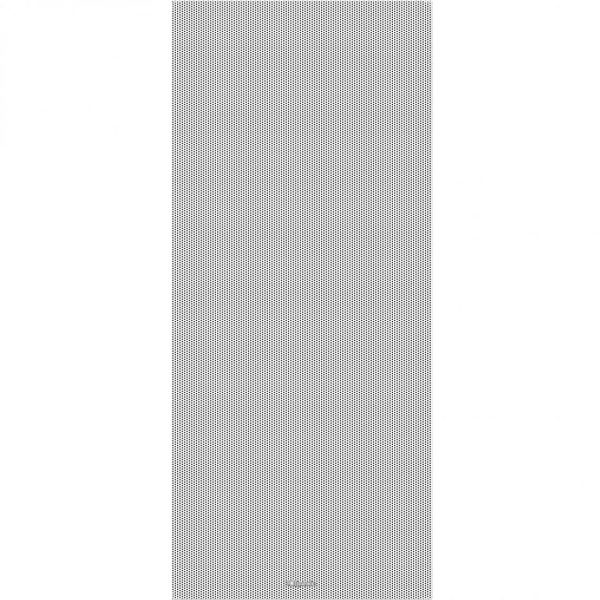

ALL NEW, BEZEL-FREE MAGNETIC GRILLE
A completely redesigned powercoated magnetic steel grille
eliminates the bezel for seamless, pristine integration into the living
space.
SPECIFICATIONS
| Frequency Range | 73Hz – 20kHz +/- 3dB |
| High Frequency Driver | 1″ (2.54cm) Silk Dome Tweeter mated to a 90°x90° Tractrix® Horn |
| Low Frequency Driver | Dual 5.25″ (13.34cm) Polypropylene Woofers |
| Sensitivity | 92 dB @ 2.83V / 1m |
| Coverage Angle | 100° |
| Power Handling | 60W RMS / 240W Peak |
| Impedance | 8 Ohm Compatible |
| Enclosure Type | ABS/Infinite Baffle |
| Finish | Black Baffle/Frame, White Paintable Grille |
| Product Dimensions | 7.5” W x 17.4” H x 3.8” D (19.1cm H x 44.2cm W x 9.6cm D) |
| Mounting Depth | 3.78” (9.35cm) |
| Cutout Dimensions | 16.5” H X 6.5” W (41.9cm H X 16.5cm W) |
| Product Weight | 6.5lbs (2.95kg) |
| Included | Flat Magnetic Grille |
| Installation Kit | IK-502-W II (Sold Separately) |
| Built From | 2017 |
