Product Description
Optoma ZU725TST – Overview

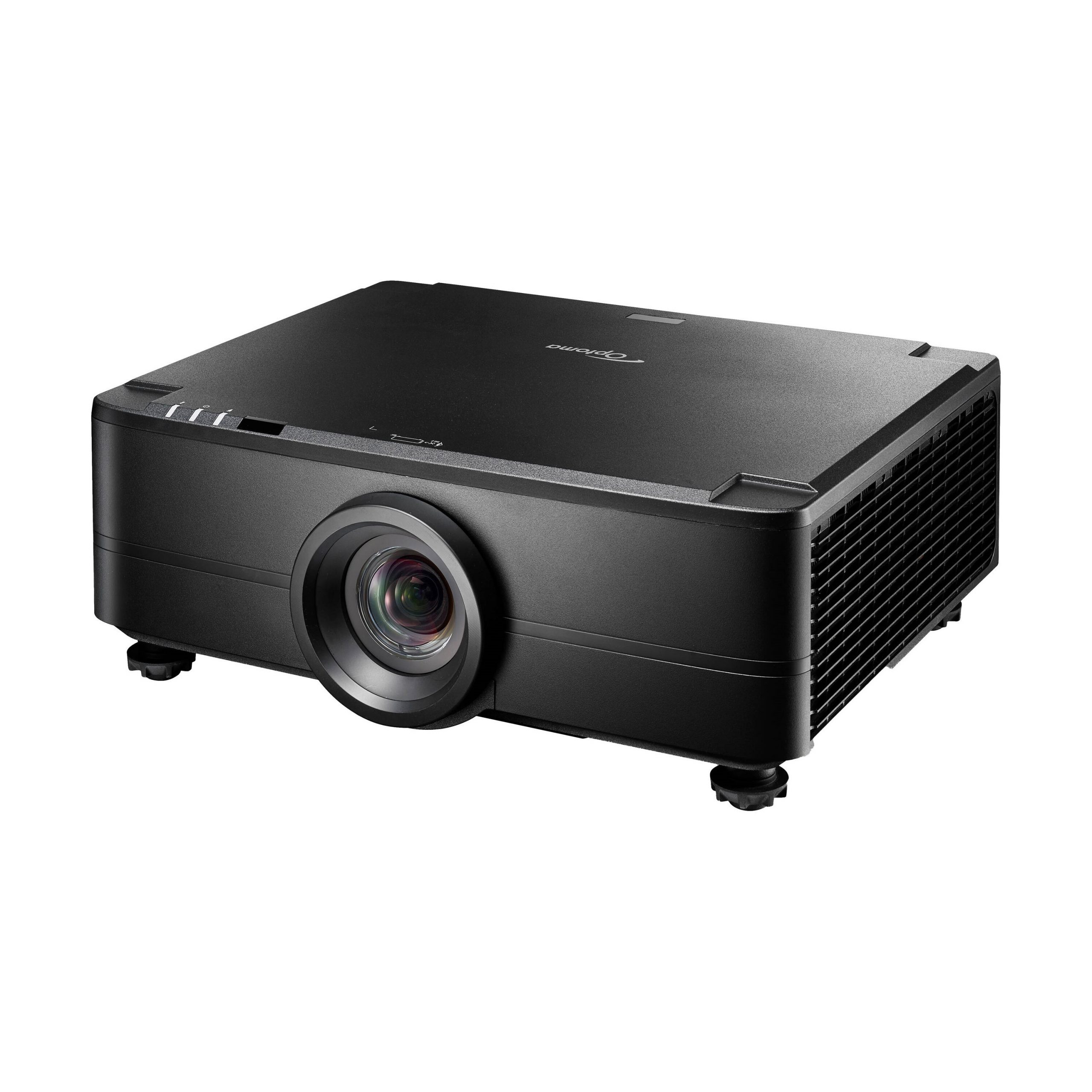

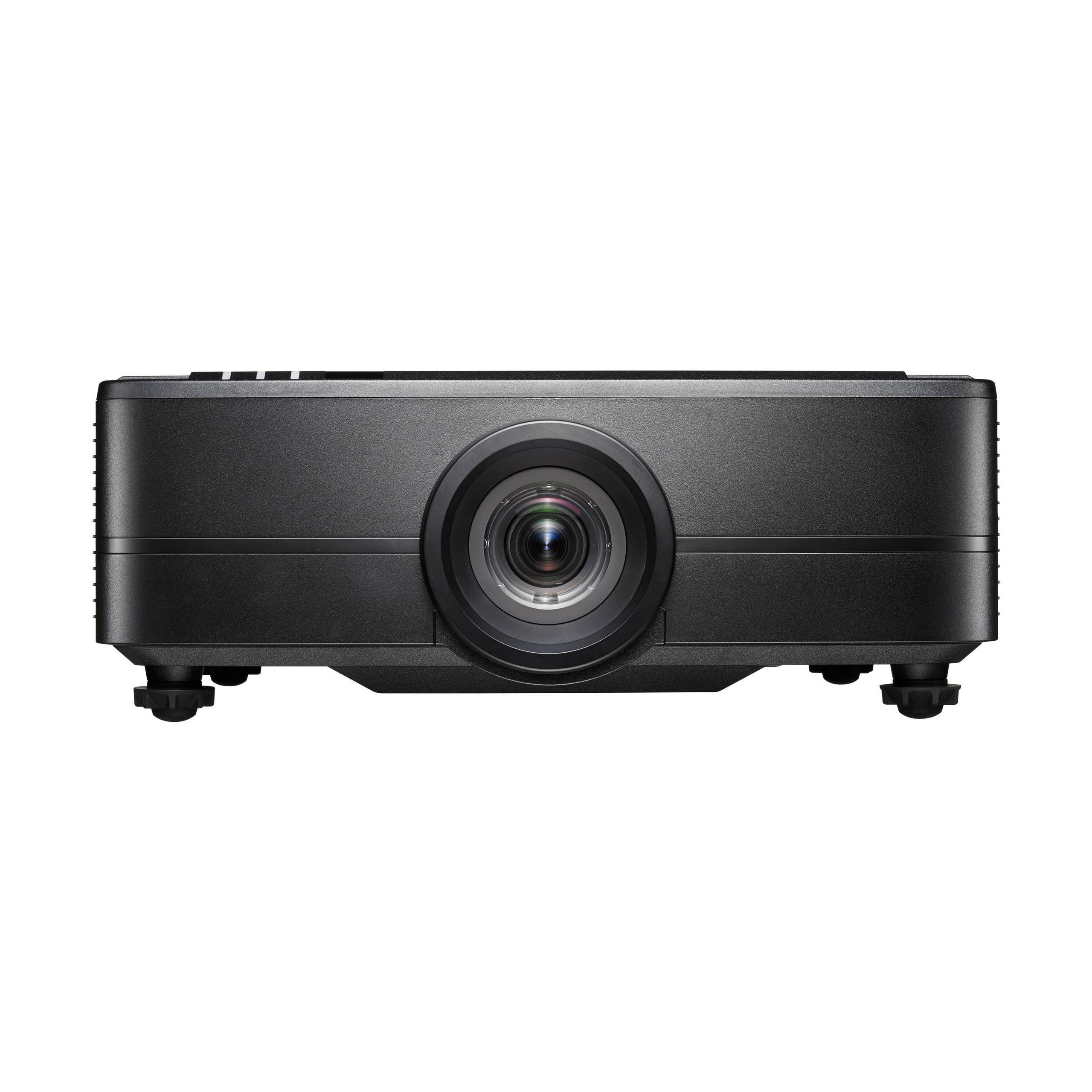

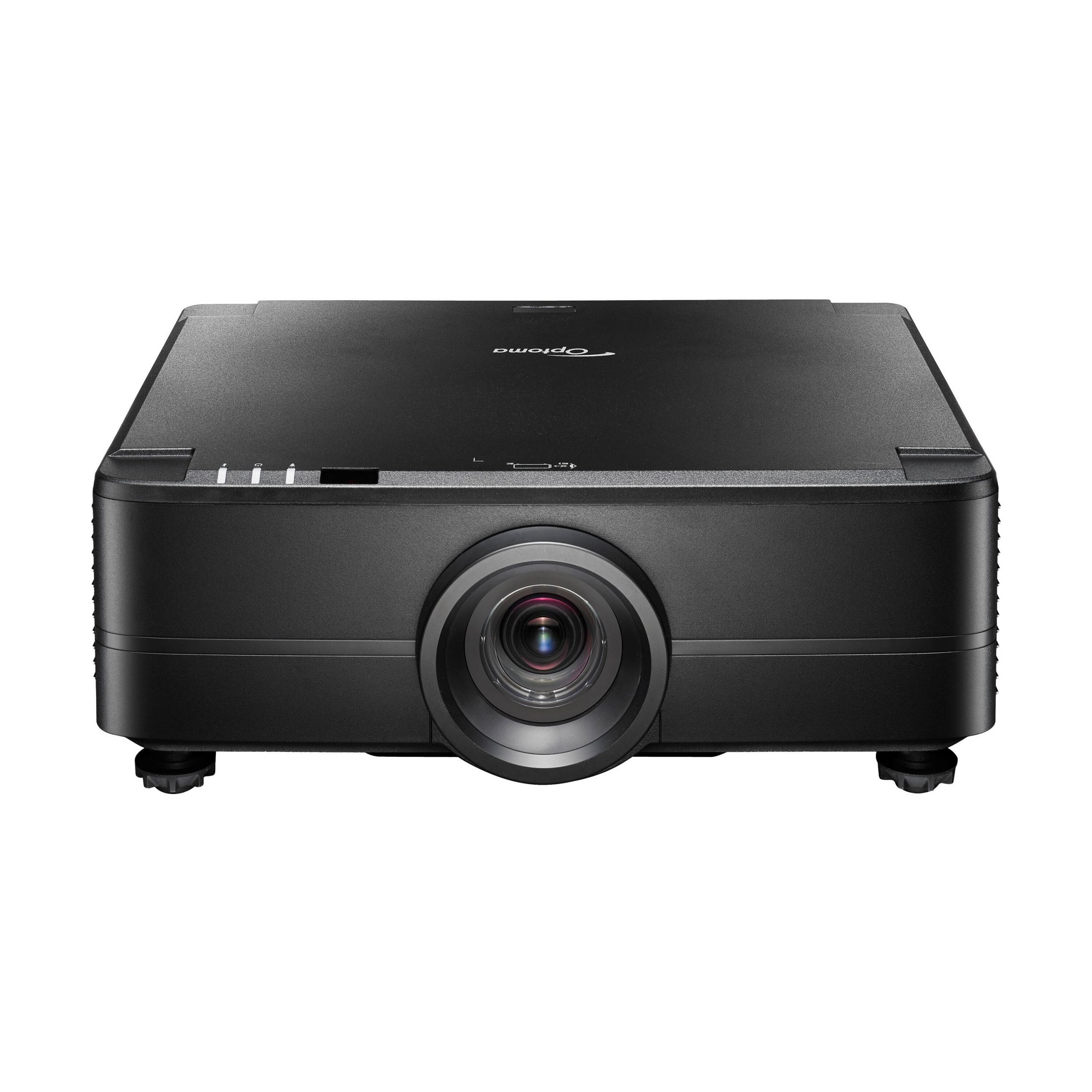

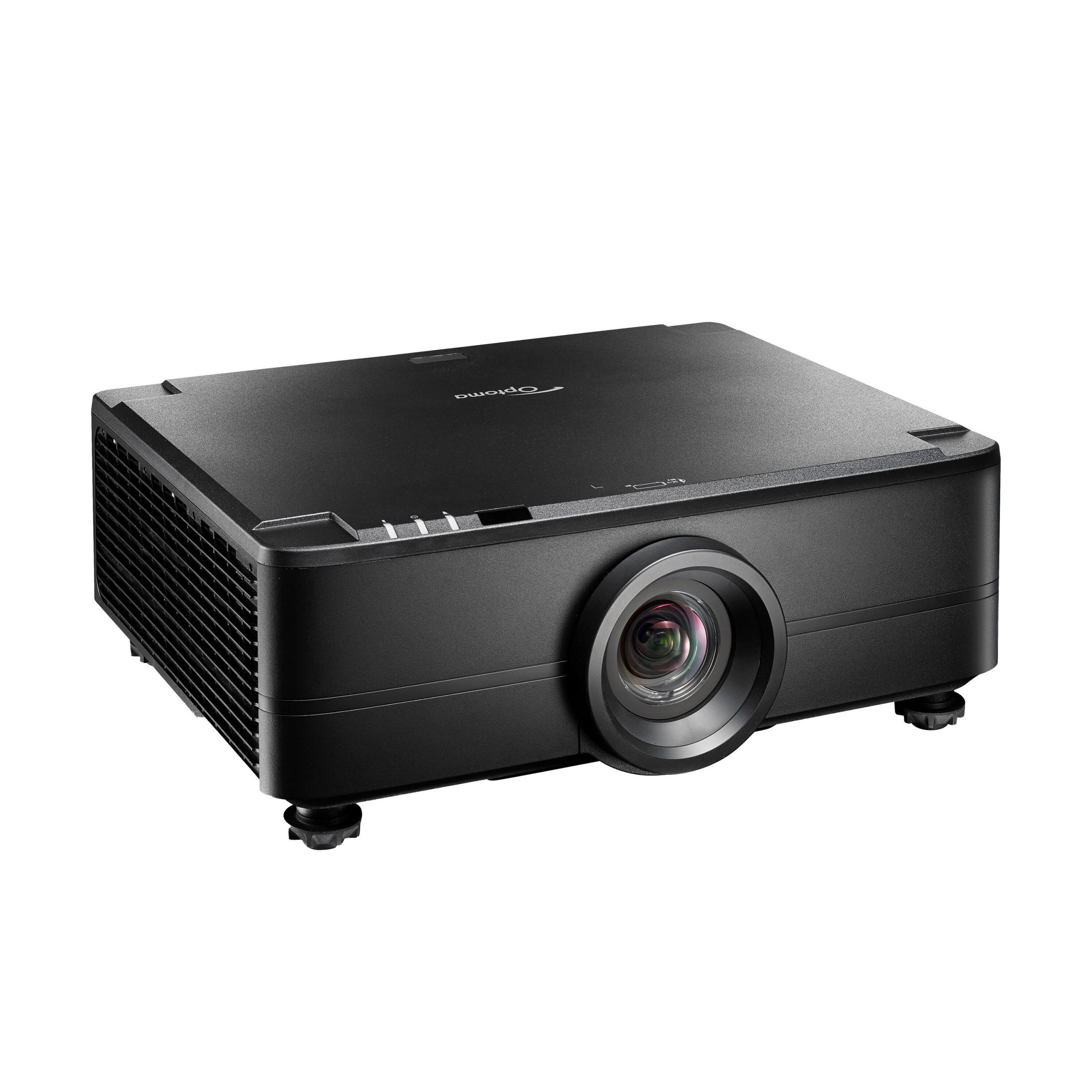

Optoma Technology’s ZU725TST WUXGA Short-Throw Laser Projector offers bright, reliable visuals and little maintenance. The ZU725TST employs DLP and laser technology in an IP5X dust-resistant design to preserve rich colour and high brightness throughout extended operation. Its brightness output is 6000 ANSI lumens. Its short-throw, fully-motorized lens and ability to be mounted in any orientation make it a great option for a wide range of applications, such as immersive installations, edge-blending, simulation, and projection mapping.
DuraCore Dust-Resistant Laser Technology
Optoma’s DuraCore technology, which combines cutting-edge laser diode cooling methods with a creative dust-resistant architecture, extends the life of light sources. With an IP5X dust resistance certification, the ZU725TST has undergone independent testing and been certified to meet IEC standard 60529. Superior brightness and outstanding dust resistance provide industry-leading endurance; perfect for trouble-free operation in demanding applications around-the-clock.
Full Motorised Lens Rotation
Full lens shift makes installation easier and offers more options for where to put projectors. The ZU725TST allows for remote control image shifting of up to 50% vertically and 15% horizontally. This allows you to choose from a greater variety of screen sizes and makes it simpler to place the projector in your room.
Four Corner Correction
In both the vertical and horizontal planes, adjust the keystone. To get an image that is precisely square, you can warp each corner of the picture separately. Perfect for awkward projector placement that requires an angled installation, uneven walls, or image stacking.
HDBaseT
Installation is made simple by the uncompromised, uncompressed Full HD video, audio, network, and control commands that are all provided on a single CAT-type cable that can reach up to 328 feet without signal loss. HDBaseT minimises installation complexity and streamlines cabling requirements, which saves money and time.
360° and Portrait Orientation
The ZU725TST is ideal for digital signage applications; you can rotate your projector 90 degrees to project a portrait image. With 360° projection images can be displayed in any orientation, giving you the freedom and versatility to install this projector in the desired location.
Integrated Warping and Edge Blending
An integrated warping and edge blending processor enables multiple projectors to be warped and blended without additional dedicated hardware, reducing the cost and complexity of installation. Warping and edge blending is configured using either the projectors on screen display or with PC software depending on model.
Color Management System
Display accurate lifelike colors to best match your viewing environment. This unique feature provides you with the flexibility to fine-tune the color settings for optimal precision.
True AV Mute
True AV mute enables the light source of the projector to be instantly switched off and on at the press of a button. Unlike standard AV mute functionality no light is emitted from the projector, this gives 100% blackout on screen.
Constant Power and Constant Brightness
Allows users to set the power levels to meet individual installation requirements. Power levels can be managed to obtain the brightest picture or longest light source life, or anywhere in-between.
Advanced light sensing technology allows the setting of brightness levels that will remain unchanged over time. Ideal for ensuring constant brightness for long running installations.
Integrator Friendly Control
The ZU725TST features a wide range of options to control and monitor the projector remotely.
- RS232 – Optoma projector’s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.
- AMX compatible – Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.
- Crestron RoomView – Using the compatible RoomView software you can power on/off, monitor, manage, and control up to 250 projectors at the same time from any computer.
- Extron IPLink compatible – Allows for easy installation with Extron control systems.
Additional Features
- 4K and HDR compatibility
- Full DLP 3D support
- 3D sync input and output
- Wired remote input
- Direct/instant power off
- Telnet compatible
- Built-in dual 10W speakers

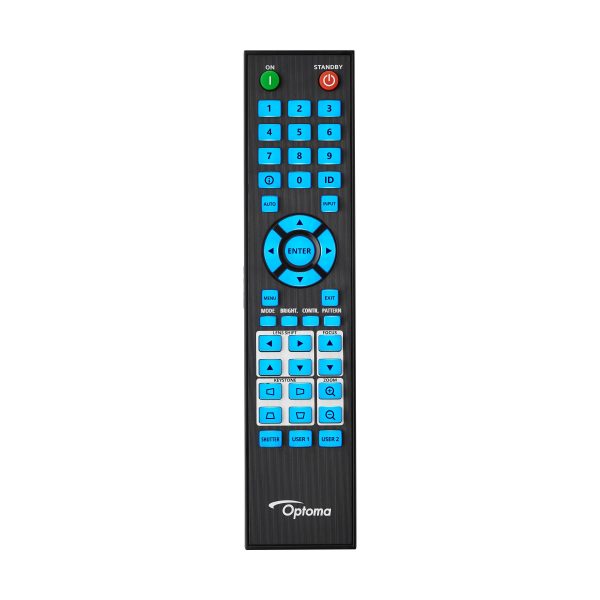

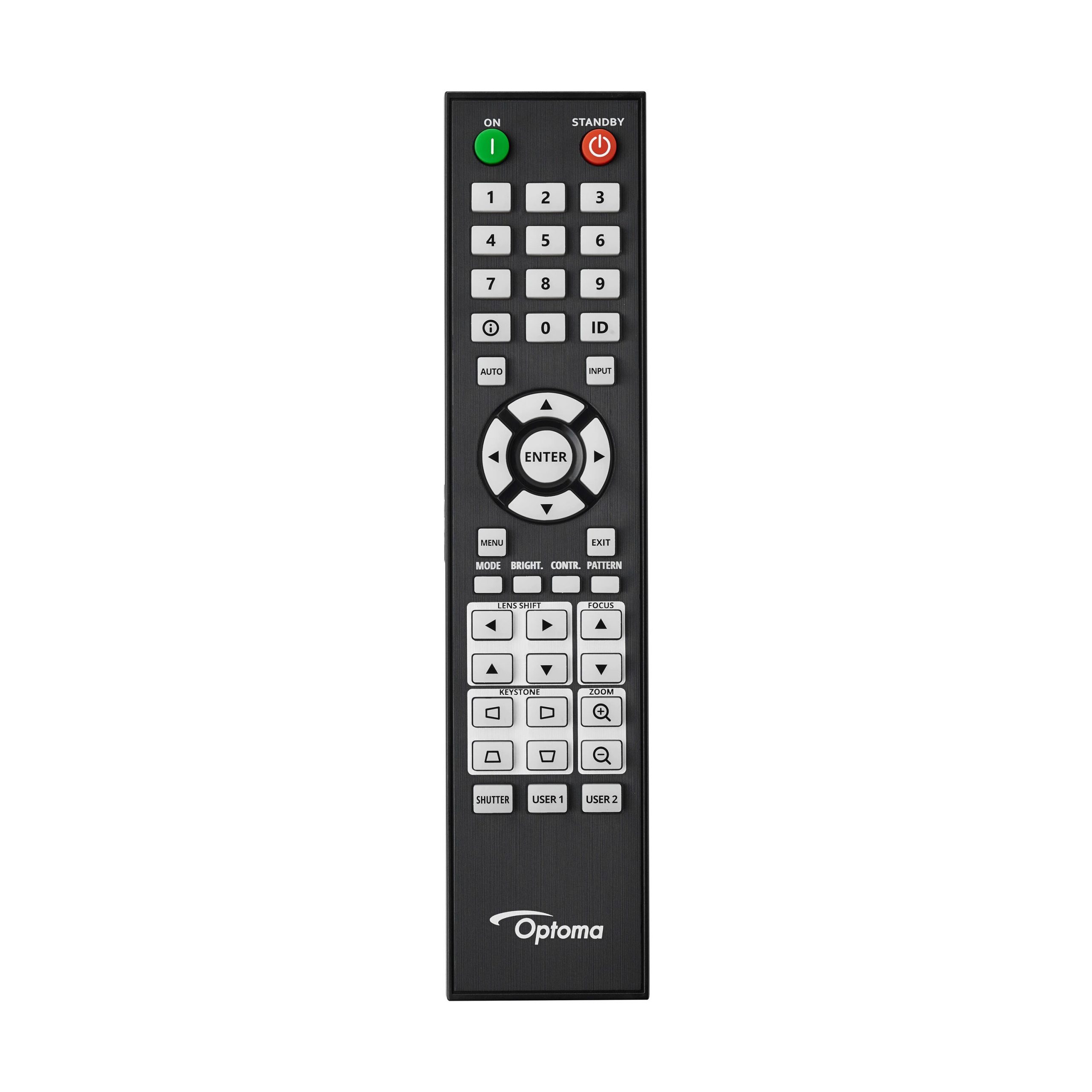

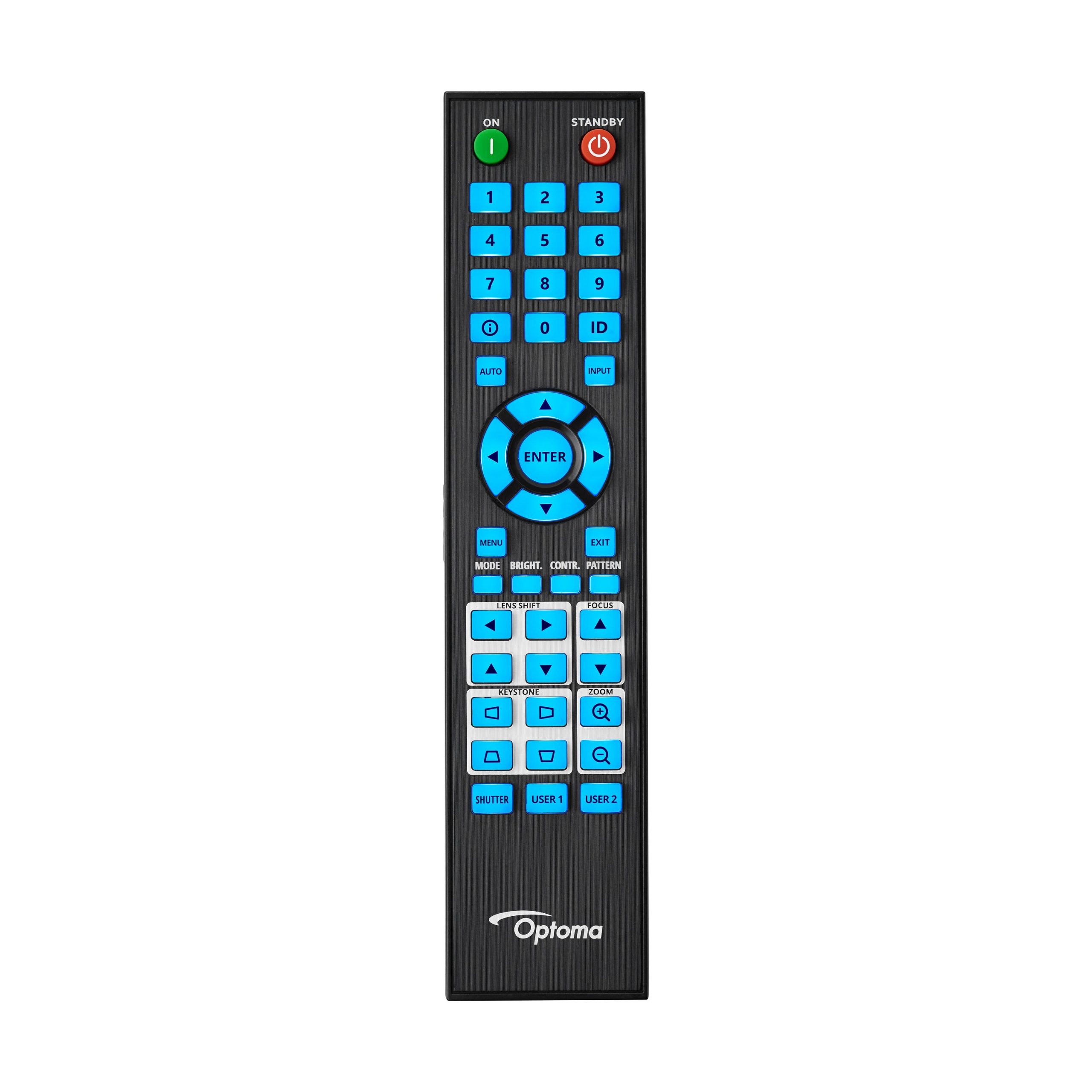

- Backlit remote control included
