W330UST

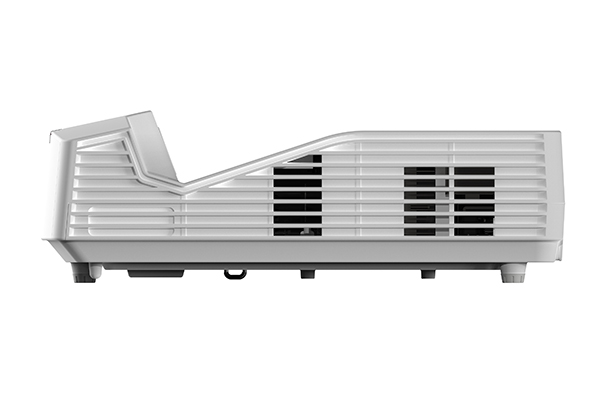

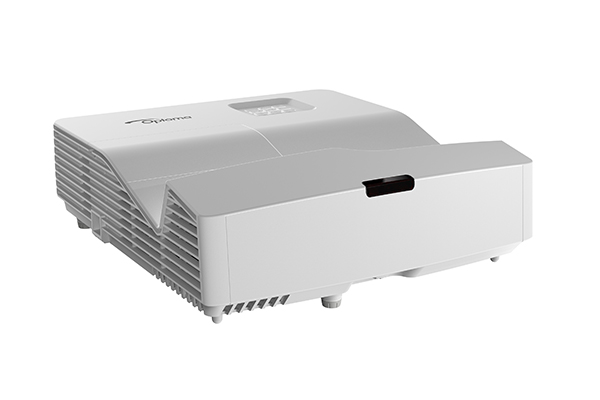

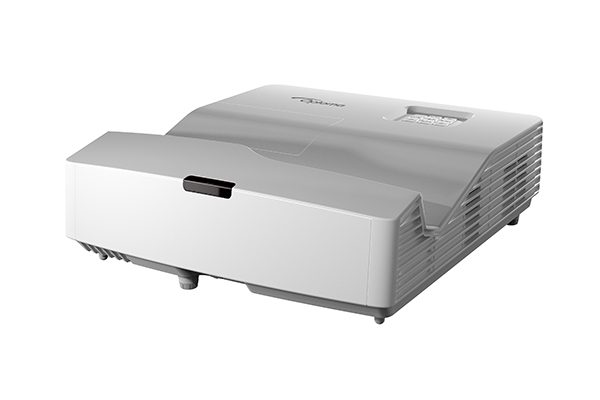

Optoma W330UST Ultra Short Throw WXGA Multimedia Projector

Lowest Price Guaranteed Free Shipping
  • Bright 3,600 lumens and 20,000:1 contrast ratio produces razor-sharp images
  • PC-free USB image viewer and office document reader
  • Wireless presentations and images with HDCast Pro (USB Wi-Fi adapter included)
  • USB display screen mirroring with iOS and Android devices
  • LAN display via Ethernet with Windows and Mac OS X
  • Auto keystone and four corner correction for robust installation

Product Description

Spectacular 115” WXGA image from inches away

Project large, 115-inch WXGA images from only inches away with the bright 3,600 lumen Optoma W330UST. Its 20,000:1 contrast ratio and ultra short throw ratio of 0.25 make it ideal for space-constrained environments, such as small classrooms, meeting rooms, house of worship and boardrooms.

A PC-free image viewer and document reader display office documents, PDFs and images from USB storage devices. HDCast Pro connectivity provides wireless screen mirroring with Android, Mac OS and Windows devices.

LAN display supports up to 4 simultaneous computers while USB display mirrors Android and iOS devices. Four corner geometric correction allows flexible installations while robust input options include HDMI, VGA and RJ-45 for connectivity to a wide range of devices.

DLP Technology

DLP® (Digital Light Processing) is a proprietary technology from Texas Instruments that offers digital projection with higher contrast, faster response time, good pixel structure and virtually no color degradation.

Ultra Short Throw

Ultra short throw projection enables closer placement to the wall with reduced shadows for easy presenting. The placement makes it perfect for interactive applications and education environments, too.

PC-free USB Image and Document Viewer

Integrated PC-free image and document viewer provide direct viewing of office documents, PDFs, images and presentations from any USB storage device.

HDCast Pro – Wireless Display and Document Casting

Screen mirror Android, Windows and Mac devices wirelessly; Cast images and documents from Android, iOS, Windows and Mac devices or use USB Display to screen mirror Android and iOS devices.

RS-232 Control

Take control of the projector using HEX or ASCII commands via RS-232 cable.

Four Corner Adjustment

Four corner geometric correction enables quick and easy image adjustments from any of the corner points of the image. This is ideal for uneven or angled projection surfaces.

TECHNICAL SPECIFICATIONS
Aspect Ratio 16:10 (native), 16:9 and 4:3 compatible
Audio 16 Watt Speaker
Brightness 3,600 ANSI Lumens
Contrast Ratio 20,000:1
Display Technology Single Texas Instruments 0.65″ WXGA DMD
Displayable Colors 1.07 Billion
Image Size 85”– 115”
Keystone Correction ±4° horizontal/vertical
Light Source Type 240W
Light Source Life 15,000/10,000/4,000 (Dynamic/Eco/Bright)
Maximum Resolution WUXGA (1920 x 1200)
Native Resolution WXGA (1280 x 800)
Noise Level 25dB (ECO)
Offset 119% ± 3%
Operating Temperature 41–104°F (5–40°C), 85% max humidity
Power Consumption 285W (Bright), 205W (ECO)
Power Supply Auto-ranging: 100V ~ 240V ± 10%, 50-60Hz
Projection Distance 6.5”– 12.75”
Projection Lens F=2.4, 3.72mm manual focus
Projection Method Front, rear, ceiling mount, table top
Throw Ratio 0.27:1 (distance/width) -+ 5% variance
Uniformity 80%
Zoom Type Fixed lens
COMPATIBILITY SPECIFICATIONS
3D Compatibilty Supports all HDMI 1.4a mandatory 3D formats (Frame pack, side-by-side, top-bottom) and up converts frame rate from 60Hz to 120Hz or 24Hz to 144Hz (i.e 60 or 72 frames per eye).
Computer Compatibilty SVGA, VGA, SXGA, UXGA, XGA,WXGA, HD, Mac
Horizontal Scan Rate 15.375 – 91.146 KHz
Vertical Scan Rate 24 – 85Hz (120Hz for 3D)
PHYSICAL SPECIFICATIONS
Dimensions 13.5″ x 4.75″ x 15″
Security Kensington® Lock port, security bar and keypad lock
Weight 8.7 lbs.
OTHER
Accessories AC power cord, remote control, Wi-Fi adapter
Optional Accessories Universal wall mount, DLP®Link™ 3D glasses, Wireless USB adapter, remote
UPC 796435 44 251 4
Warranty Info 3-year parts and labor warranty, 1-year on lamp
SPECIFICATIONS
Connections Control Complete on-screen menu adjustment in 18 languages
Video Input NTSC, PAL, SECAM, SDTV 480i/p, 576i/p, HDTV 720p(50/60Hz), 1080i(50/60Hz), 1080P(50/60Hz)
