Product Description

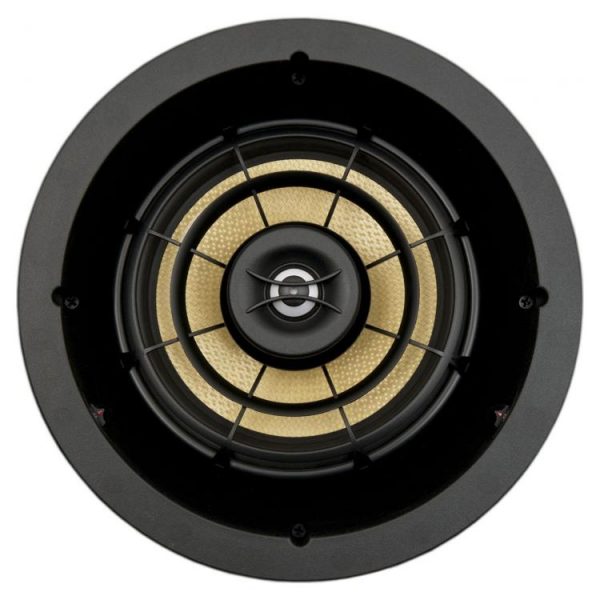

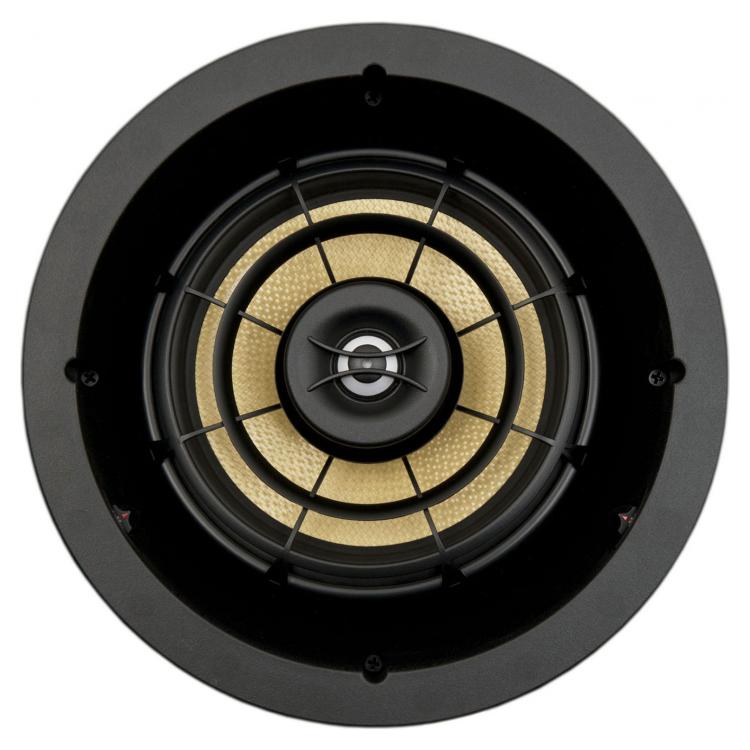

AIM Series in-ceiling speakers were the first to feature an aimable woofer/tweeter module that aims the sound in any direction you choose. No longer are you bound by the design of your room. Just mount the speakers wherever it’s convenient and point them wherever you want sound. Profile grilles are available in AIM8, AIM7 and AIM5 models
Features of this Product
- Flangeless Appearance
- Pivoting and Rotating 7″ Kevlar Cone Woofer
- Pivoting 1″ Magnesium/Aluminum Dome Tweeter
- WavePlane Technology
- Front-Mounted Bass & Treble Equalization Switches
- Timbre-Matched to All Five Series Speakers
- Sensitivity: 91dB 1W/1m
- Power Handling: 150 Watts
- Impedance: 8/6/4 Ohms, Depending on Switch Settings
- Frequency Response: 35Hz – 20kHz
- Diameter x Depth: 9 5/8″ x 5 1/8″ (251 mm x 130 mm) (with Grille)
- Cut-Out Diameter: 8 1/4″ (210 mm)
- • Front-Mounted Treble Equalization Switch
• Sensitivity: 90dB 1W/1m
• Power Handling: 125 Watts
• Impedance: 8 Ohms
• Frequency Response: 40Hz – 20kHzZ
• Diameter x Depth: 9-5/8″ x 5-1/8″ (244 mm x 130 mm)
• Cut-Out Diameter: 8-1/4″ (210 mm)
