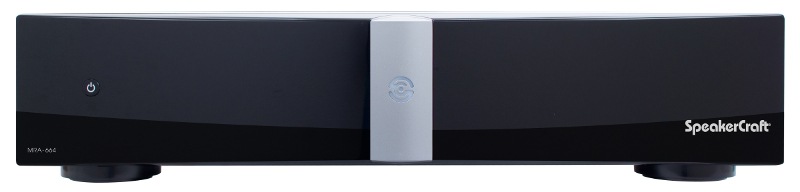

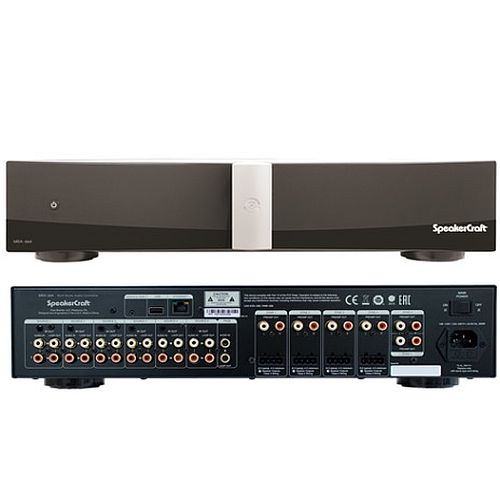

SPEAKERCRAFT Multi-Room Audio Controller – Black (each)

Lowesst Price Guaranteed Free Shipping
  • Weight: 18 lbs. (8,6 kg)
  • Power Supply: 100-120 / 220-240 V~, 50 / 60 Hz
  • Fuse Rating: T5 AL, 250 V~
  • Ethernet: 1 RJ-45 10/100 BaseT
  • USB: 1 Type-A



SKU: MRA-664 Categories: , Product Condition: New Brand:

Product Description

The new SpeakerCraft MRA-664 is the whole home audio controller that delivers up to half a dozen unique music sources for amazing sound in every room of the house.

This MRA is the first to integrate multi-room audio along with home theater control in a way that is simple to set up and brilliant to listen to. SpeakerCraft’s long-standing reputation for being bold and best in the audio space has been validated yet again with the introduction of this integrator-friendly controller. Using just a tablet or PC, an installer can quickly configure the MRA for sources, zone preferences, user interface customization and home theater control. A job that might have once required hours of programming has been distilled down to a simple execution. And, for larger homes, two MRAs can be paired to create a six-source, 12-zone system. That means 12 rooms with music porting into each of them. Additionally, all zones are equipped with fixed or variable pre-outs, making it simple to add power and volume with one of our new SpeakerCraft Amplifiers. The MRA-664 can be controlled by SpeakerCraft programmable sHR200 handheld remote, sKP7 7-button keypad or sTP7 7-inch touch panel, as well as an iPhone, iPad, and Android phones and tablets, and Windows or Mac computers. Dimensions 17.25 W x 5 H x 12.9 D inches. (437 x 100 x 328 mm). Weight 18 lbs. (8.6 kg). Power Supply 100-120 220-240 V 50-60 Hz. Amplifier Power Output 30 Watts per channel at 8 Ohms, 45 Watts per channel at 4 Ohms. Audio Source Inputs 6 x Analog RCA connectors. Audio Zone Outputs 4 x Amplified and 2 x Preamp Only. IR Outputs 6 routable. Ethernet 1 RJ-45 10-100 BaseT. USB 1 Type-A.

Features of this Product

  • Dimensions: 17 1/4″W x 4 15/16″H x 12 7/8″D with feet  (437 x 100 x 328 mm)
  • Rackmount Dimensions: 17 1/4″W x 3 1/2″H (2U) x 12 7/8″D without feet(437 x 88 x 328 mm)
  • Weight: 18 lbs. (8,6 kg)
  • Power Supply: 100-120 / 220-240 V~, 50 / 60 Hz
  • Fuse Rating: T5 AL, 250 V~
  • Power Consumption: 200 W
  • Amplifier Power Output: 30 watts/ch @ 8Ω 45 watts/ch @ 4Ω
  • THD: <0.10%, 1 watt output into 8Ω
  • Signal to Noise Ratio: >100db, 20Hz-20kHz unweighted
  • Audio Source Inputs: 6 – analog, RCA connectors
  • Audio Zone Outputs: 6 – 4 Amp + Preamp, 2 Preamp Only
  • Speaker Connections: (4) detachable, (4) pole terminals
  • IR Outputs: 6 routable
  • Ethernet: 1 RJ-45 10/100 BaseT
  • USB: 1 Type-A

Additional information

Brand

Colour

continuous (RMS) power handling

101-200 watts

Number of Speakers

Single

Speaker Type
