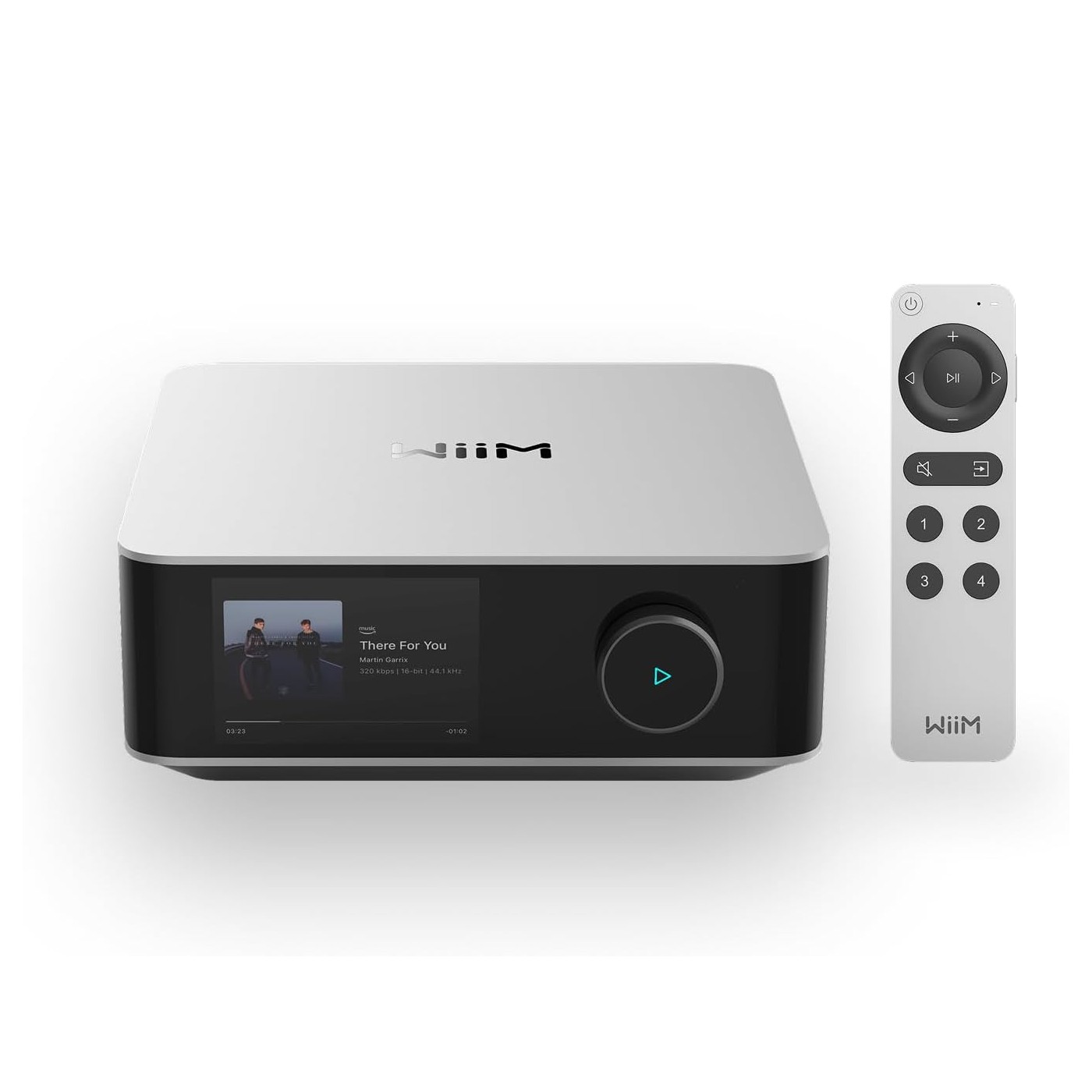

WiiM Amp Ultra 100W Streaming Amplifier with HDMI ARC, Optical, RCA Inputs, Silver

$749.00

Lowesst Price Guaranteed Free Shipping
  • 100 Watts per channel high power
  • Vivid 3.5-inch integrated touchscreen display
  • RoomFit automatic room correction technology
  • HDMI ARC input for TVs
  • ESS SABRE DAC for pristine audio
  • Tri-band Wi-Fi 6 for stable streaming
Colour
Silver

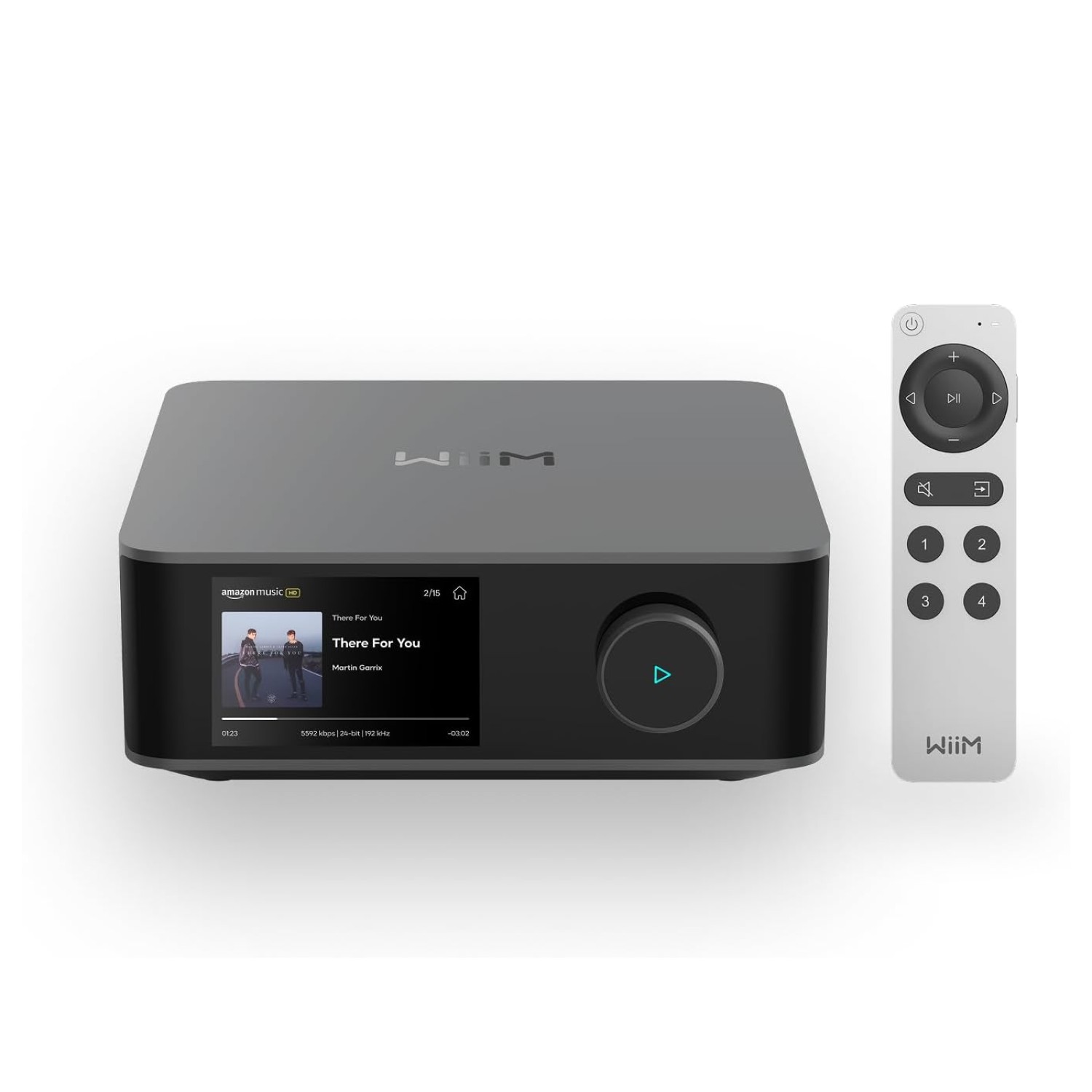

Space Gray
Pay Over Time With RBC Payplan (Financing Plan)

SKU: WiiM Amp Ultra Silver Categories: , , Product Condition: New Brand:

Product Description

Performance Meets Precision

CA amp ultra

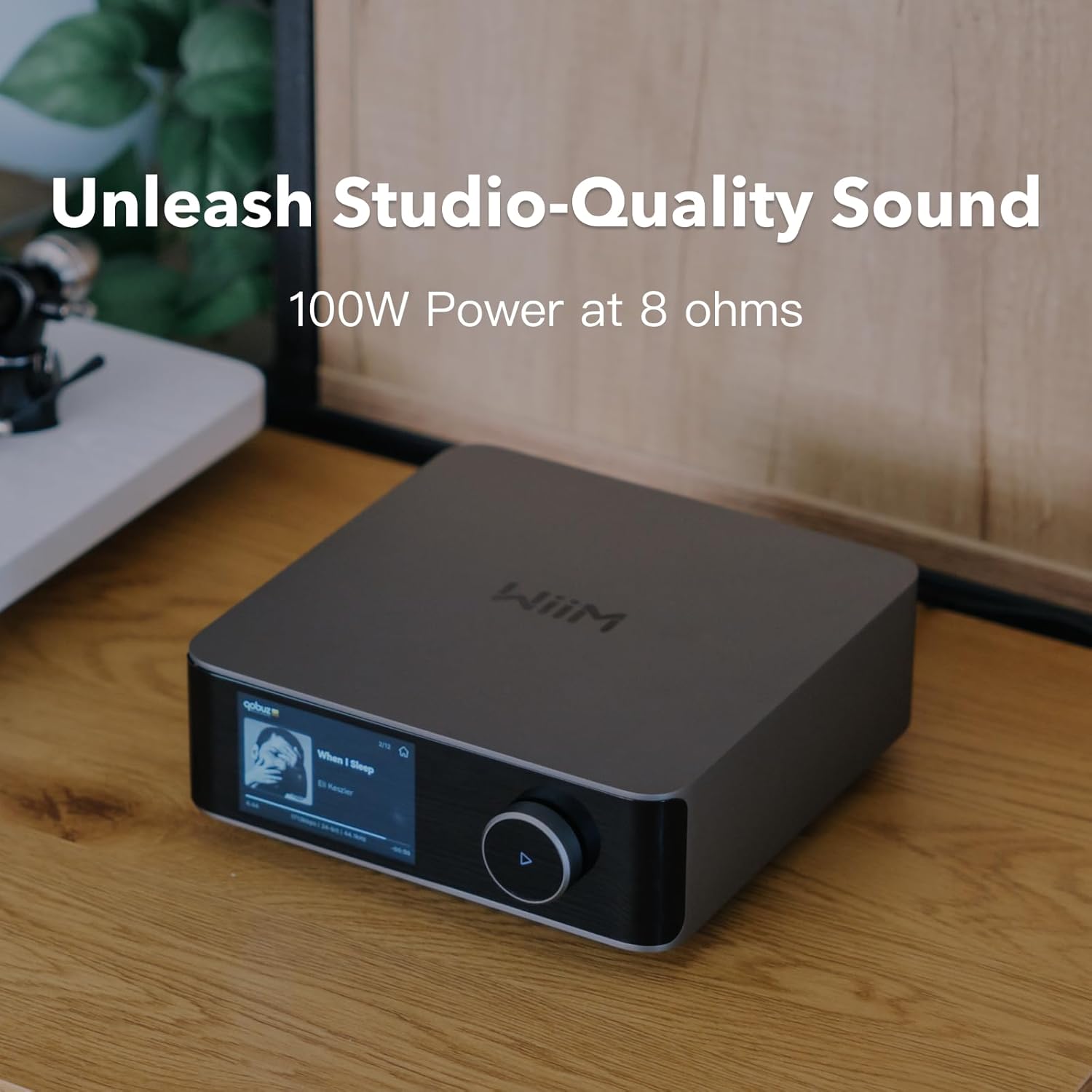

Meet the WiiM Amp Ultra – our most powerful streaming amp yet. Delivering 100W per channel at 8Ω with ultra-low distortion, it brings rich, high-fidelity sound to everything from vinyl to Spotify to cinematic TV audio—perfect for audiophiles, home theater enthusiasts, and smart home setups.

Beautiful Inside and Out

Amp Ultra_CA

Designed to stand out and fit in, the Amp Ultra features a sleek unibody aluminum chassis and a vibrant 3.5” glass-covered touchscreen. Easily control playback, switch sources, view album art, and more—all at your fingertips.

Amp Ultra_CA

Flagship Components, Flawless Fidelity

Powered by an ESS ES9039Q2M SABRE DAC, Dual TI TPA3255 Class-D amplifiers, and Six TI OPA1612 op-amps, the Amp Ultra uses Post-Filter Feedback (PFFB) tech to deliver clean, detailed sound with consistent performance—ideal for bookshelf, floor-standing, or in-wall speakers.

Post Filter Feedback Technology

The WiiM Amp Ultra features advanced Post-Filter Feedback (PFFB) technology, reducing distortion and ensuring consistent, high-quality sound across speaker loads. It delivers a wider soundstage, rich detail, and an immersive, natural audio experience with precision and depth.

Additional information

Brand

Colour

Dimensions and Weight

Dimensions: 7.87 x 8.3 x 3 inches (200 x 211 x 76.2 mm)
Weight: 5.4 lbs (2.45 kg)
Audio Performance

• Power Output (THD = 0.08%, two channels driven): 100 W per channel @ 8Ω, 200 W per channel @ 4Ω
• Amplifier Technology : Class-D with PFFB (Post-Filter Feedback) technology
•Total Harmonic Distortion (THD+N): ≤0.005%, -106 dB (A-weighted)
• Signal-to-Noise Ratio (SNR) : ≥120dB
• Damping Factor: 94
• Frequency Response: 20Hz – 20kHz ± 0.5dB
• Impedence Range: 2 – 8Ω
Audio Processing

Premium Audio Components: ESS 9039Q2M high-performance DAC, Dual TI TPA3255 Amps, TI OPA1612 op-amps for ultra-low distortion and rich, detailed sound.
Bit-Perfect Playback: Supports up to 192kHz/24-bit audio
Dynamic Range: ≥120dB for high-resolution sound

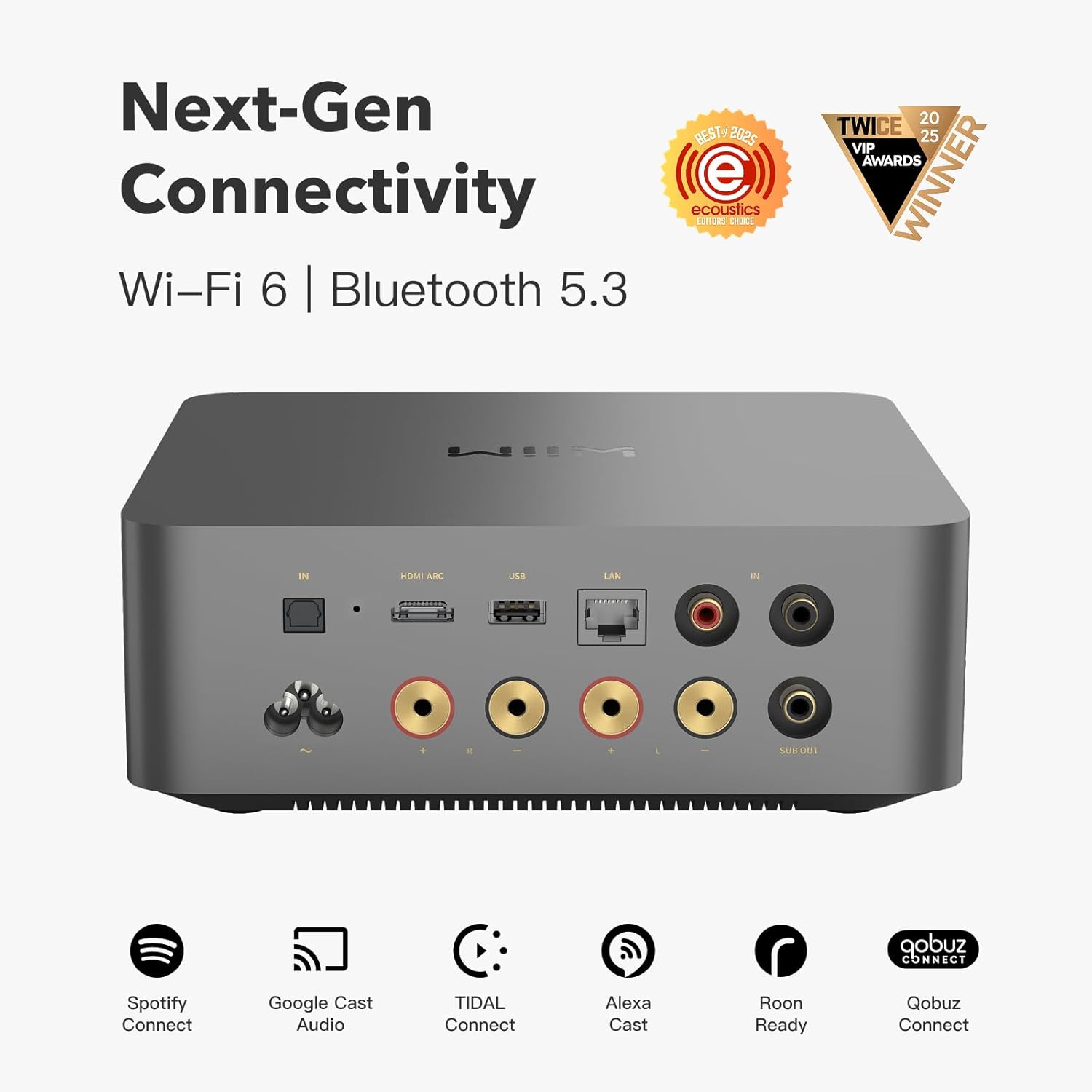

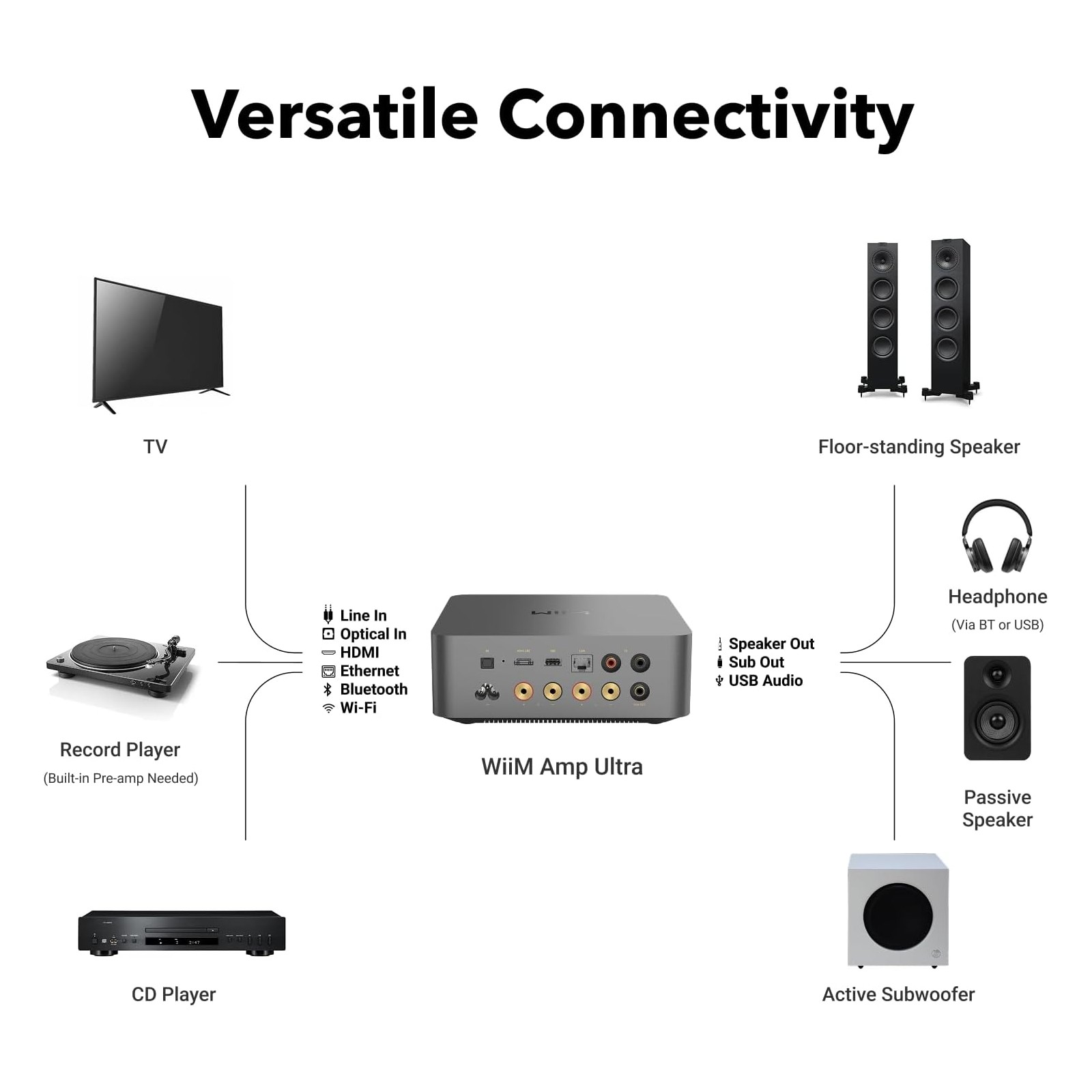

Input & Output Options

✅ Analog Inputs:
• 1x RCA Stereo: Connects to external audio sources like CD players or PCs
✅ Digital Inputs:
• 1x Optical (TOSLINK) – Up to 192kHz/24-bit
• HDMI ARC: Receives audio from TVs, PCM up to 192kHz/24-bit, and Dolby Digital 5.1 formats
✅ Speaker Outputs:
• Gold-plated binding posts (supports banana plugs or bare wire connections)
✅ USB Audio Output:
• Supports up to 8-channel 24-bit/192kHz; UAC 2.0 compliant
✅ Sub Output:
• Dedicated output for powered subwoofers (RCA Mono)
Wireless & Network Connectivity

Wireless Connectivity:
Bluetooth 5.3: Supports A2DP receiver and transmitter, AVRCP, HID, and works with the WiiM voice remote Wi-Fi 6 (Upgradeable to Wi-Fi 6E): Ensures stable and high-speed wireless streaming
Wired Network:
Ethernet (100Mbps): Standard RJ45 port
EQ & Sound Customization

Input-Specific EQ:
Independent settings for Wi-Fi, HDMI ARC, Optical, Bluetooth, Line-In
EQ Tools:
▪ 24 Preset EQ Profiles
▪ 10-Band Graphic & Parametric EQ

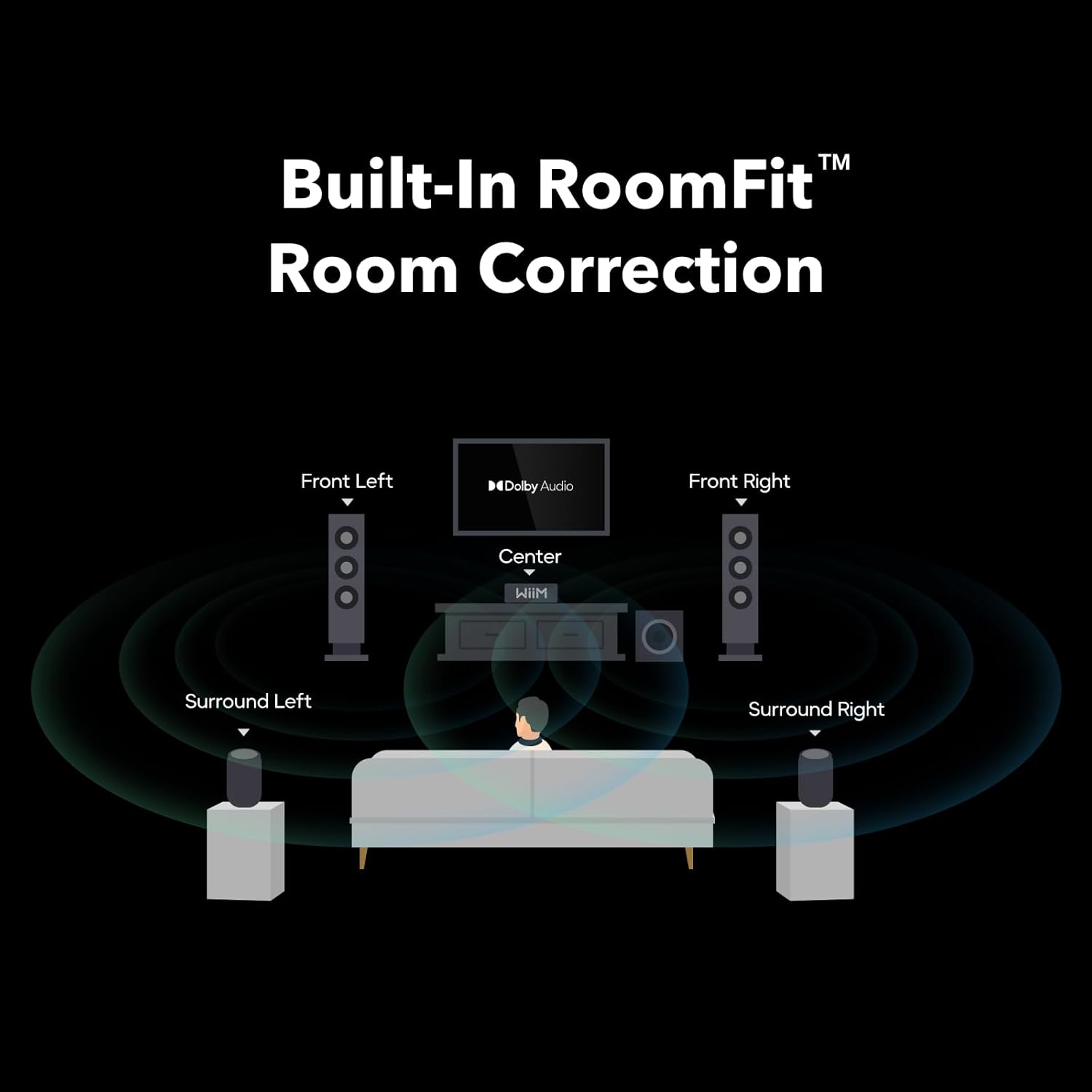

▪ Built-in Room Correction with mic-guided acoustic tuning

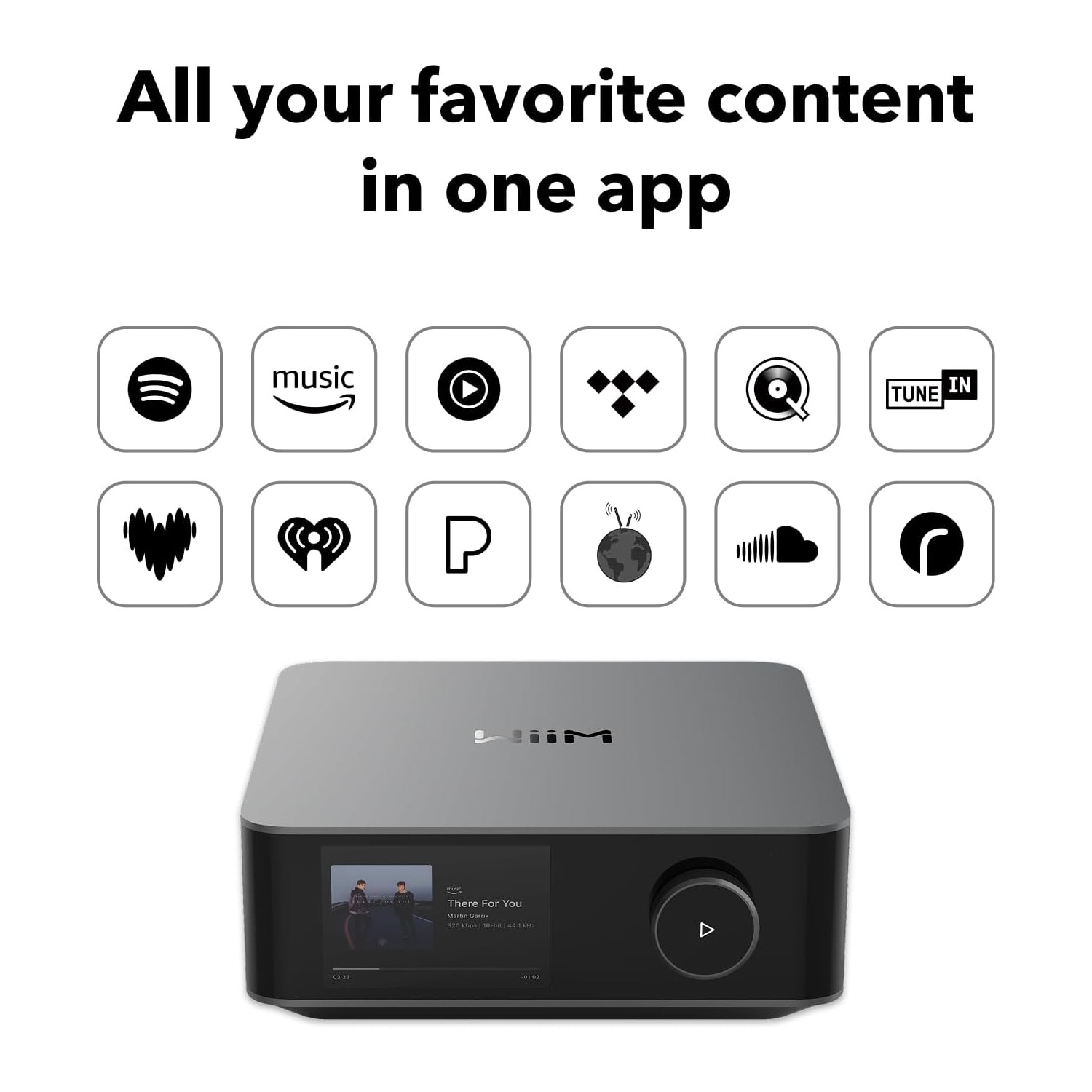

Streaming & Smart Features

Streaming Protocols:
▪ WiiM Home App
▪ Google Cast
▪ Spotify Connect
▪ TIDAL Connect
▪ DLNA, LMS
▪ Roon Ready (Certification Pending)
• Multi-Room Audio:
Compatible with WiiM, Google Home, and Alexa multi-room systems
• Stereo Pairing:
Supports L/R speaker setup for enhanced stereo imaging

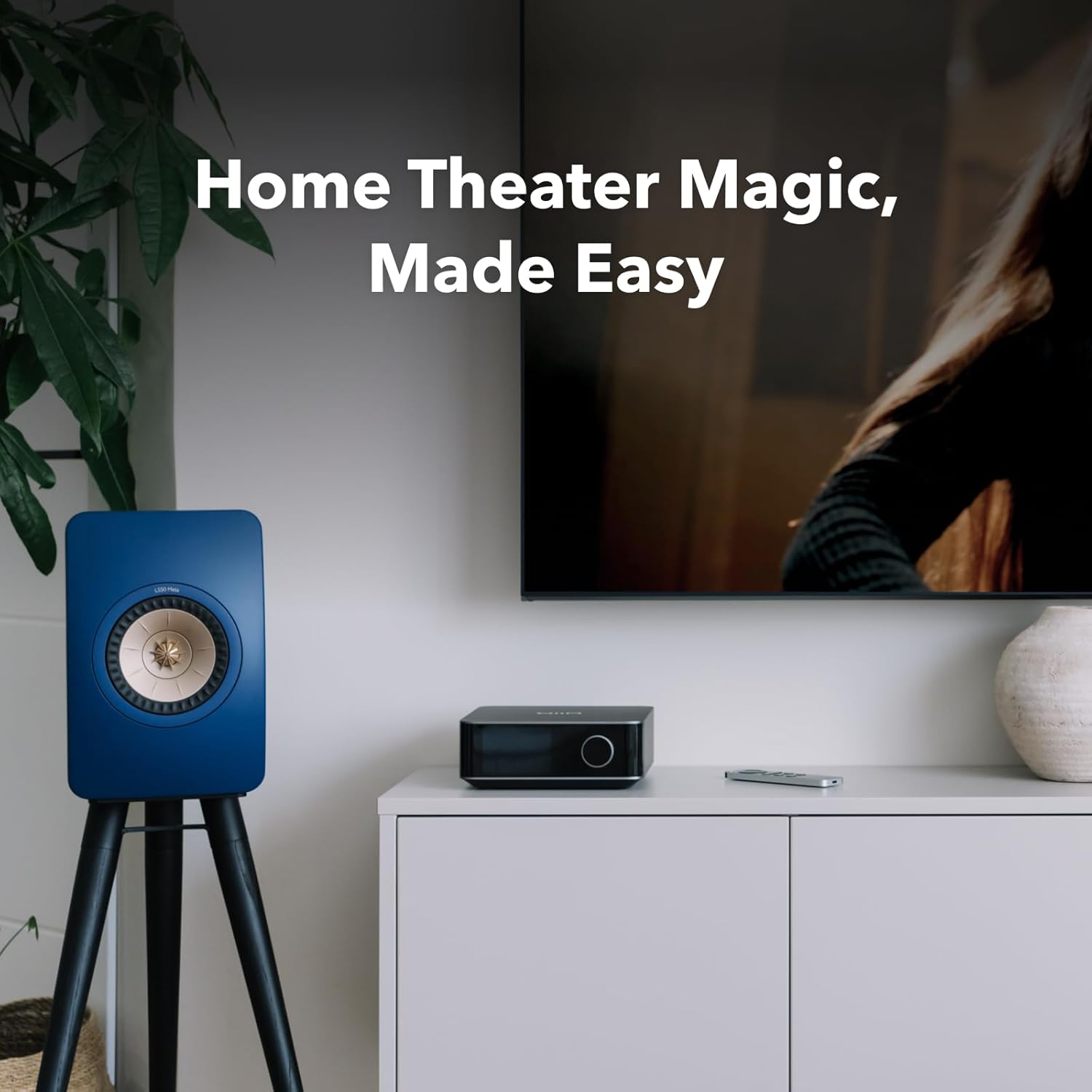

• Home Theater Mode:
Functions as front, center, or surround channel in a Dolby 5.1 setup via HDMI ARC
• Smart Presets:
Quick access to favorite playlists, sources, or routines
• Alarm Clock:
Configurable time, repeat schedule, and music source

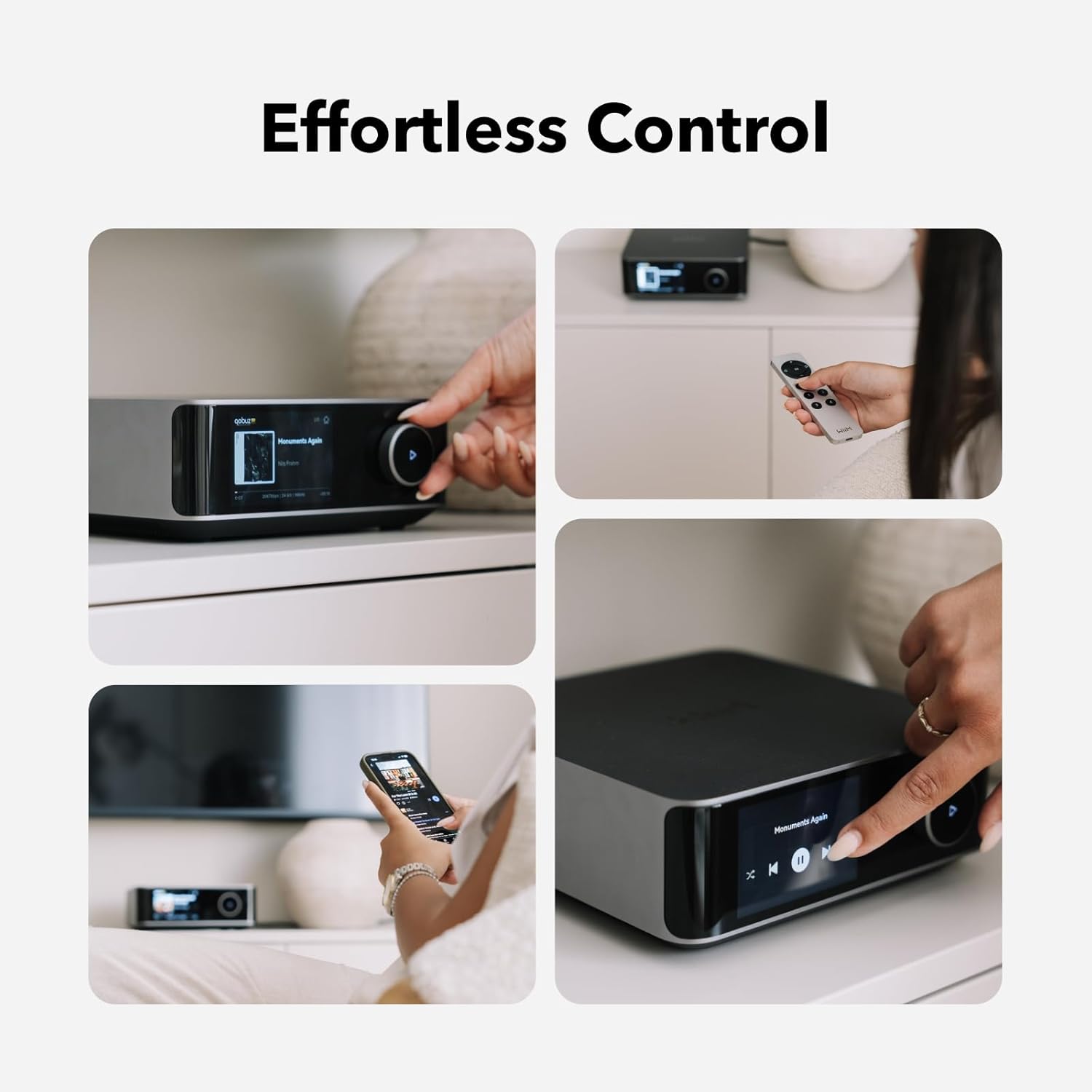

Touch Display

Screen:
3.5” glass-covered capacitive touchscreen
Functions:
▪ Playback controls, album art, EQ adjustment, input switching
▪ Queue view, preset access, VU meters, time/date in standby
▪ Custom wallpapers and onboarding setup (OOBE)
▪ Supports firmware updates directly via screen
Design & Controls

Chassis: Precision-machined unibody aluminum for durability & heat dissipation
Dimensions: 7.9” x 2.9” x 7.9” (200 x 75 x 200 mm)
Weight: 5.4 lbs (2.45 kg)
Physical Controls: Multifunctional rotary knob (Volume, Play/Pause)
Thermal Management: Copper heat pipe, large aluminum heatsink, unibody aluminum case, and precision PID thermal control
Cooling System: Passive, silent operation
