WiiM Ultra Music Streamer & Digital Preamp, 3.5″ Touchscreen, HDMI ARC, Silver

$499.00

Lowesst Price Guaranteed Free Shipping
  • Premium ESS ES9038Q2M SABRE DAC
  • Extensive inputs including HDMI ARC
  • Integrated 3.5-inch touchscreen display
  • Roon Ready, Spotify Connect, Tidal
  • Built-in MM phono input
  • Aluminum chassis, high-value hub
Colour
Silver
Space Gray
Pay Over Time With RBC Payplan (Financing Plan)

SKU: WiiM Ultra Silver Categories: , , Product Condition: New Brand:

Product Description

Digital Hub for Your Music

ultra

The WiiM Ultra redefines your audio experience by bringing Hi-Res streaming capabilities, advanced room correction, and smart home integration to your existing setup, be it powered speakers or amplifiers. It seamlessly connects with a wide range of devices, offering a versatile audio solution.

WiiM Ultra

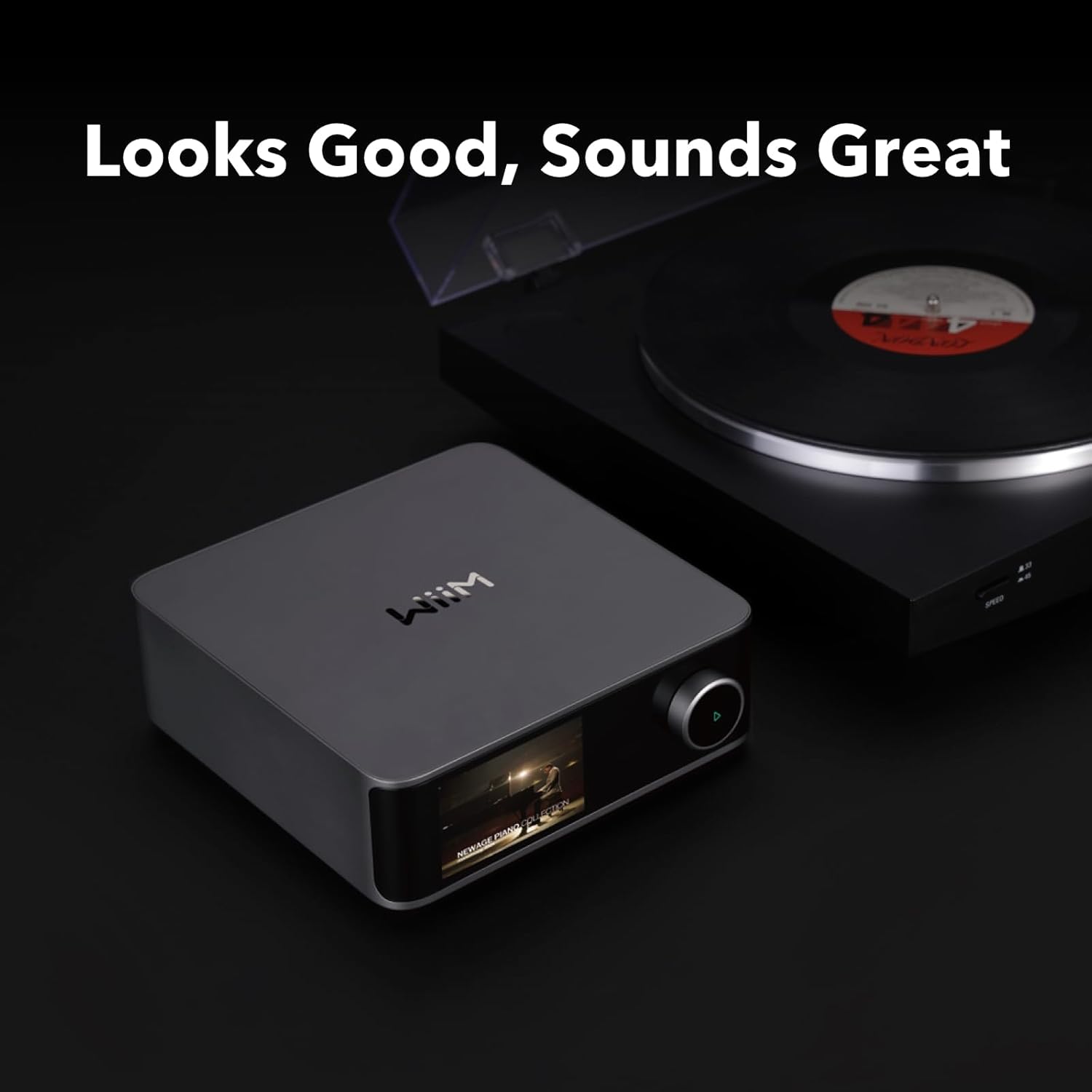

Sleek Design, Superior Build

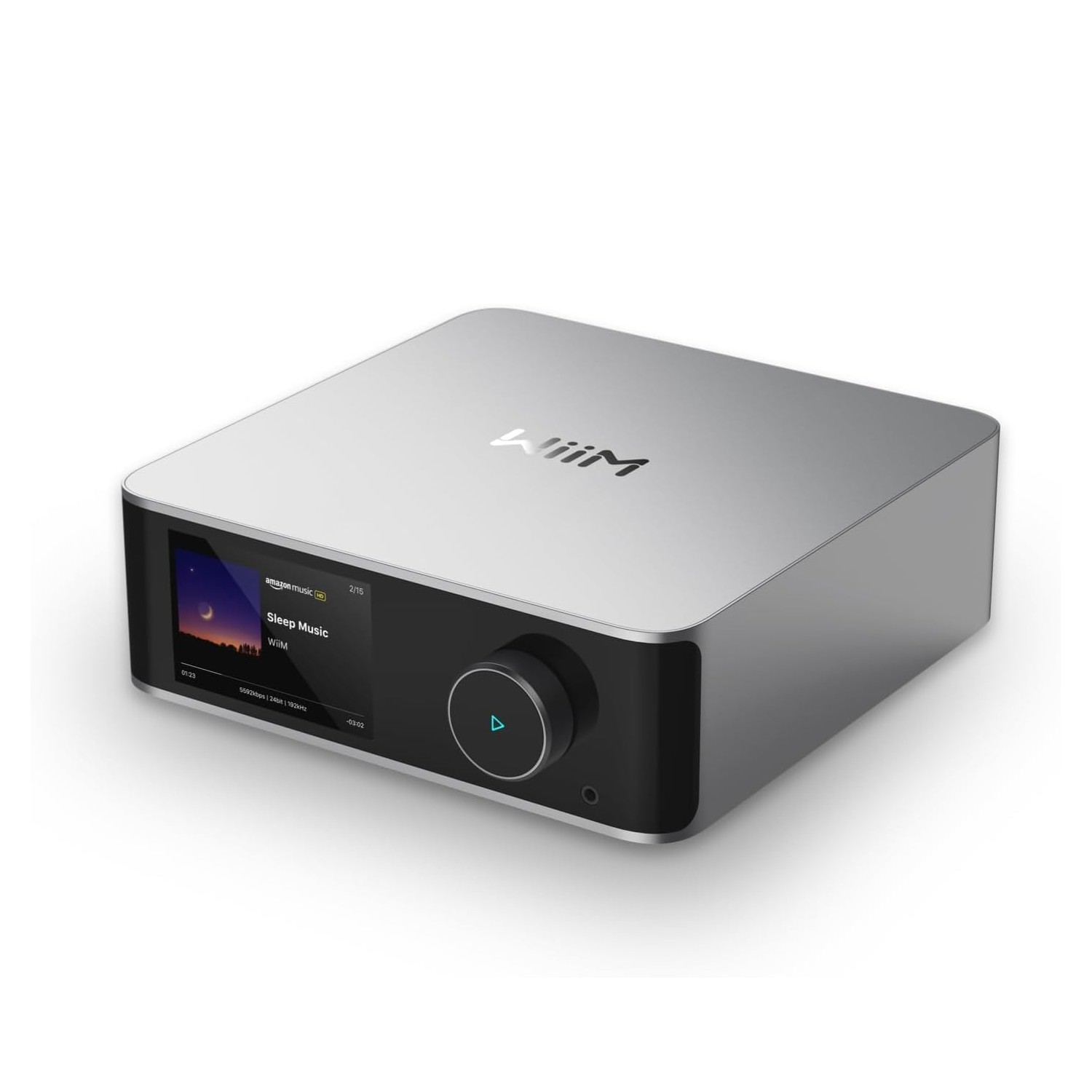

Experience exceptional audio with our sleek aluminum-encased device, featuring a 3.5” glass-covered touchscreen. It offers a comprehensive suite of audio inputs and outputs and is built with audiophile-grade components for unparalleled sound quality.

WiiM Ultra

Superior Sound Quality

Premium 32-bit/384kHz ES9038 Q2M SABRE DAC, and high fidelity headphone amplifier TPA6120A2, delivers outstanding audio clarity with a THD+N of -116dB and an SNR of 121 dB for Line Out, up to -99 dB THD+N and 119 dB SNR for headphone out.

Home Theater Magic, Made Easy

Elevate your entertainment effortlessly with the WiiM Ultra’s HDMI ARC and Subwoofer Out for rich stereo sound in movies, shows, and games. Connect a powered subwoofer for deeper bass, and personalize your audio using the WiiM Home App’s EQ settings and bass management.

Additional information

Brand

Colour

Dimensions and Weight

Dimensions：8.3" x 7.87" x 2.83" (211 mm x 200 mm x 72 mm)
Weight：(3.13 lbs) 1.42 kg
Power Input：100-240V AC input, 50/60 Hz, 0.5A Max
Touch Display

• Glass-covered 3.5" vibrant touchscreen display:

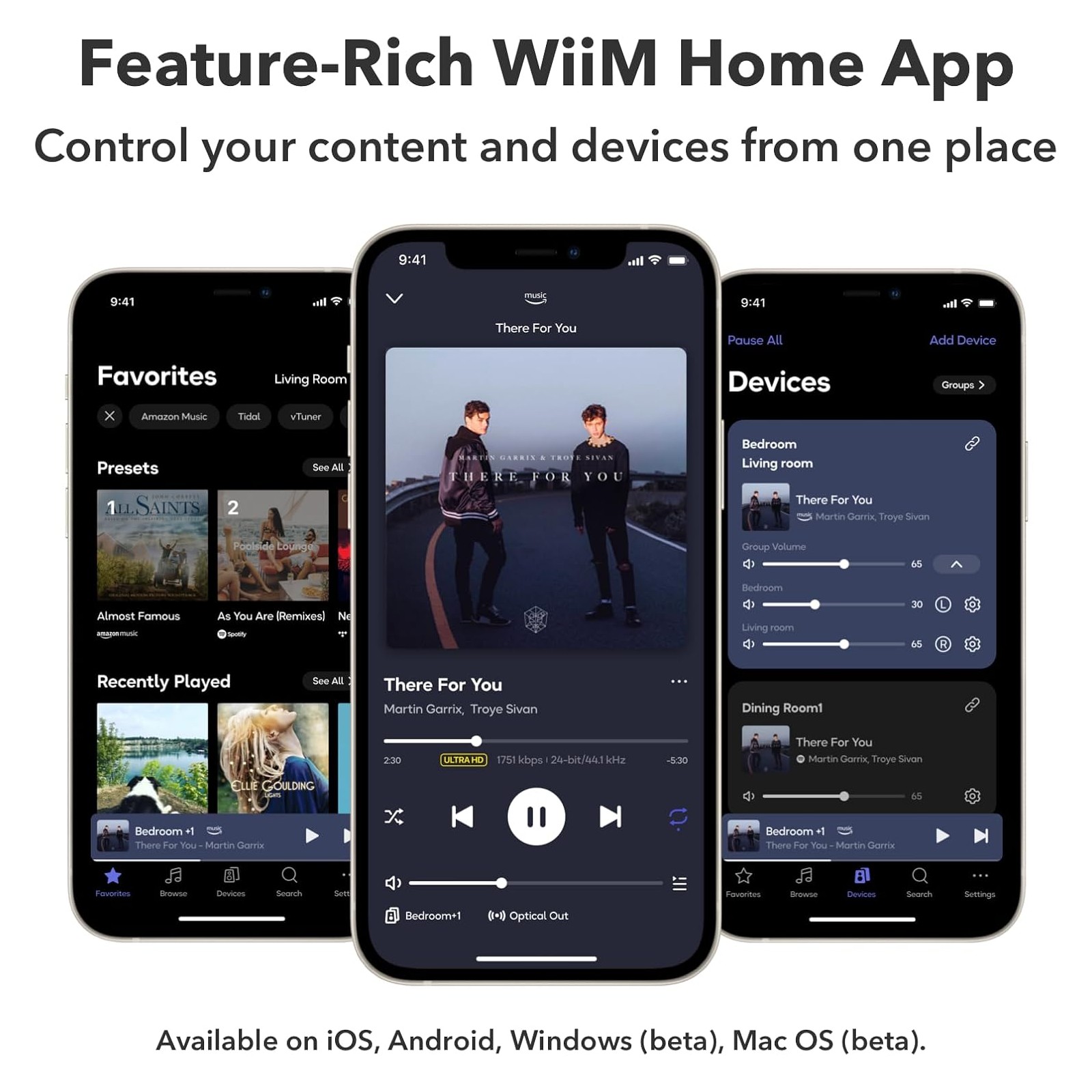

Displays App widgets, large album pictures, playback control, playing queue, presets, EQ, audio input and output, and device settings
Guides users through the OOBE and OTA
Provides feedback when there's a change in the play mode
Control Interfaces

LCD Touchscreen: 3.5-inch display for playback control and settings
Volume Knob: Adjusts volume and functions as a play/pause button
LED Indicator: 4-color RGBW LED indicates device status
LED

4 Color RGBW LED indicates the device status

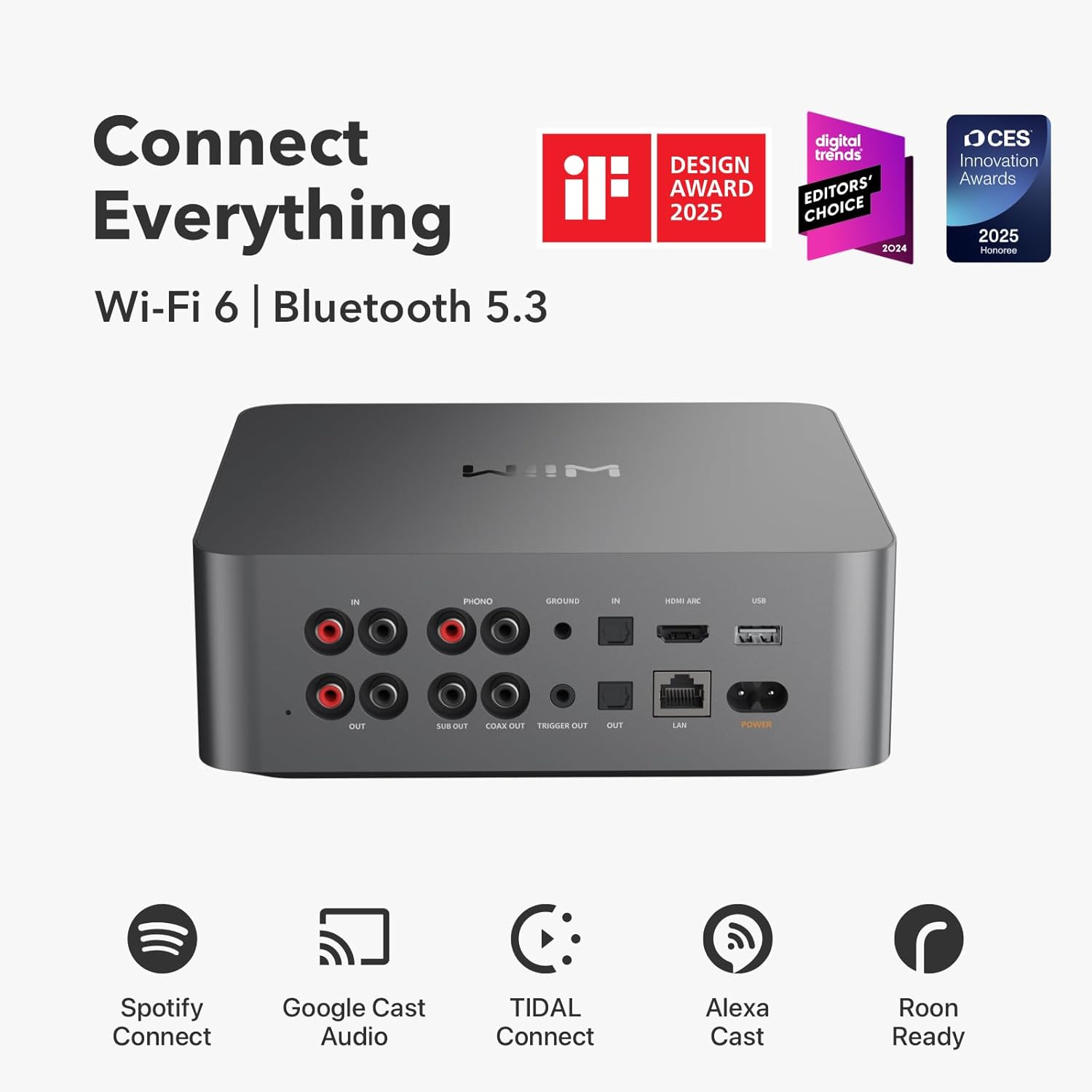

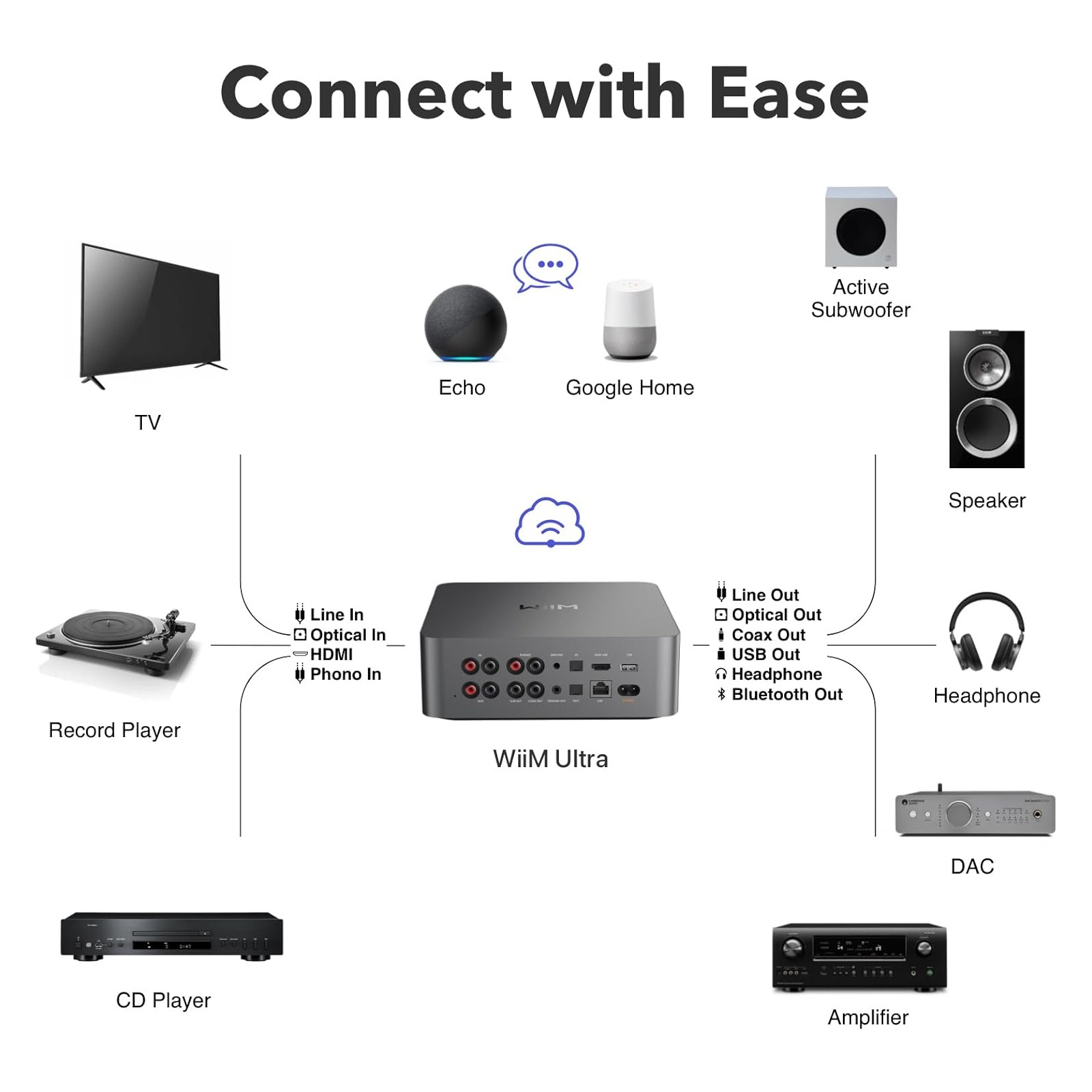

Input Options

Analog Inputs:
Line-In (RCA): Connects to external audio sources like CD players or PCs
Phono Input: Dedicated input for turntables without a built-in preamp

Digital Inputs:
Optical (TOSLINK): Supports 2-channel PCM stereo up to 24-bit/192kHz
HDMI ARC: Receives audio from TVs; supports PCM and Dolby Digital 5.1 formats
Wireless Connectivity:

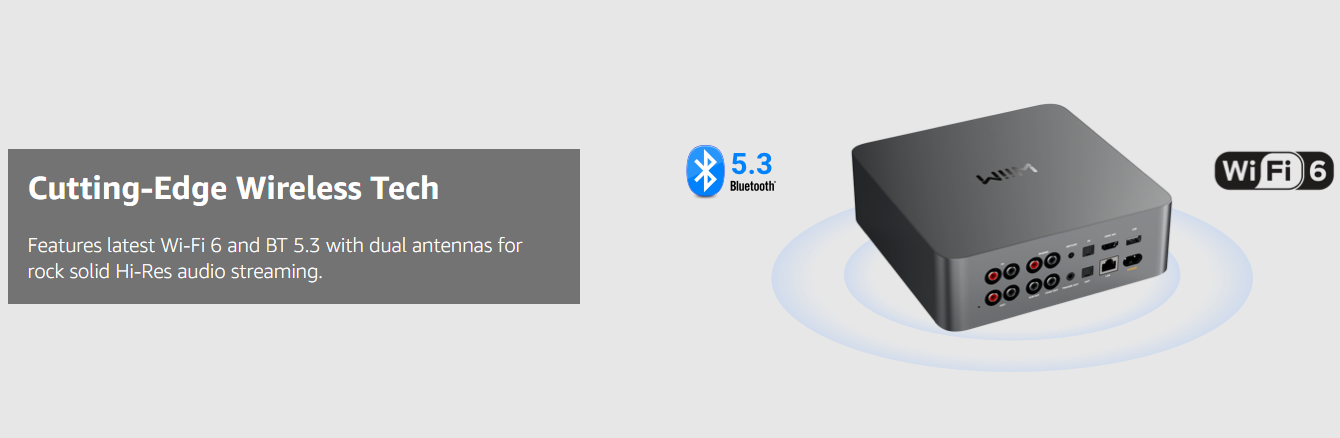

• Bluetooth 5.3: Supports A2DP receiver and transmitter, AVRCP, HID, and works with the WiiM voice remote​​
• Wi-Fi 6 (Upgradeable to Wi-Fi 6E): Ensures stable and high-speed wireless streaming​​
USB Port: For connecting USB storage devices (formatted in FAT32, NTFS, or EXT4)​
Output Options

Analog Inputs:
Line-Out (RCA):Maximum output of 2.1V RMS
Headphone Out:3.5mm jack for connecting headphones

Digital Outputs:
Optical (TOSLINK): Supports up to 24-bit/192kHz
Coaxial (S/PDIF): Supports up to 24-bit/192kHz
USB Audio Out: Supports up to 24-bit/192kHz; UAC 2.0 compliant
Subwoofer Output: Dedicated output for powered subwoofers​
12V Trigger Out: Allows automatic power control of connected devices​​
Audio Performance

Line out：
DAC: ESS ES9038Q2M SABRE DAC
Analog Output SNR: 121 dB (A-weighted)
THD+N (Analog Out): -115 dB (0.00018%)
Supported Audio Formats: AAC, ALAC, FLAC, MP3, WAV, WMA, and more
Maximum Sampling Rate: Up to 192kHz/24-bit
Headphone out：
300 ohms: SNR (119 dB), THD+N (-99 dB)
32 ohms: SNR (119 dB), THD+N (-92 dB)
External Storage

Access personal media library and use it as a media server for other WiiM and DLNA devices,
Support FAT32, NTFS, and EXT4 file systems.
Supported Streaming Protocol

Spotify Connect, TIDAL Connect, Google Cast Audio (CastLite), Alexa built-in, DLNA, Squeezelite, Roon Ready
Package Contents

User Guide *1
Power Cable *1
RCA Cable *1
HDMI Cable *1
Optical Cable *1
Remote Control *1
Phono Ground Adapter*1
