DLA-NZ800 – Overview

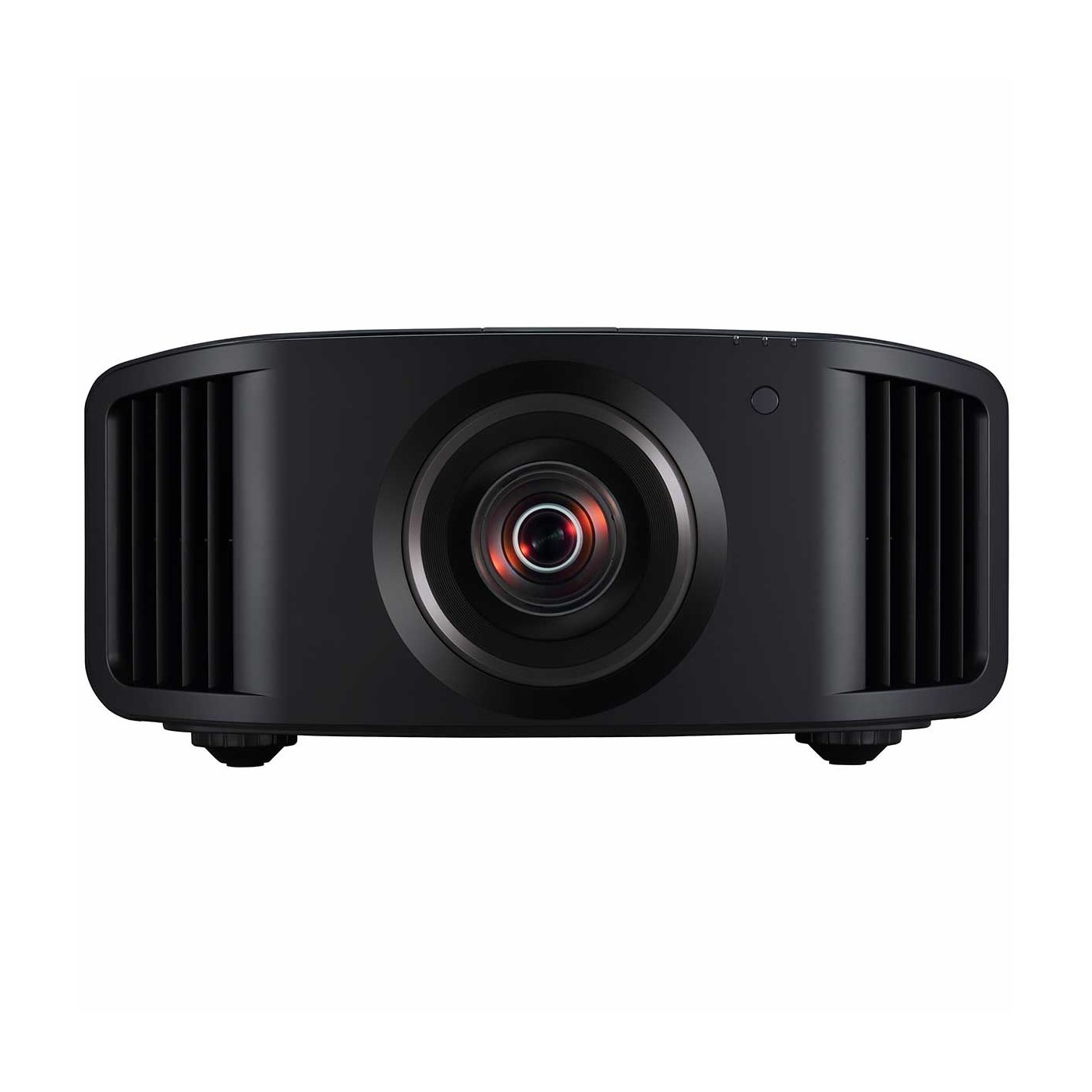

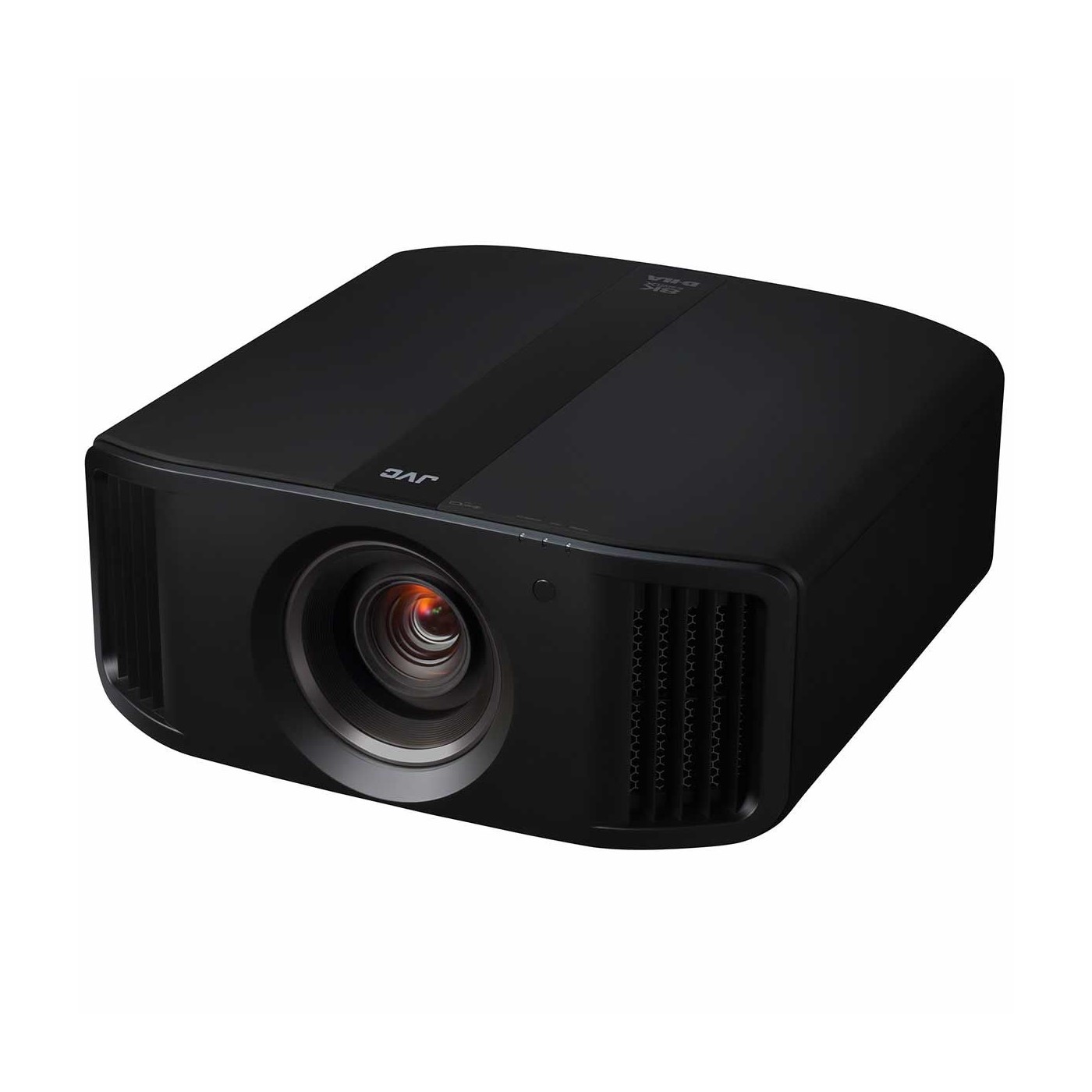

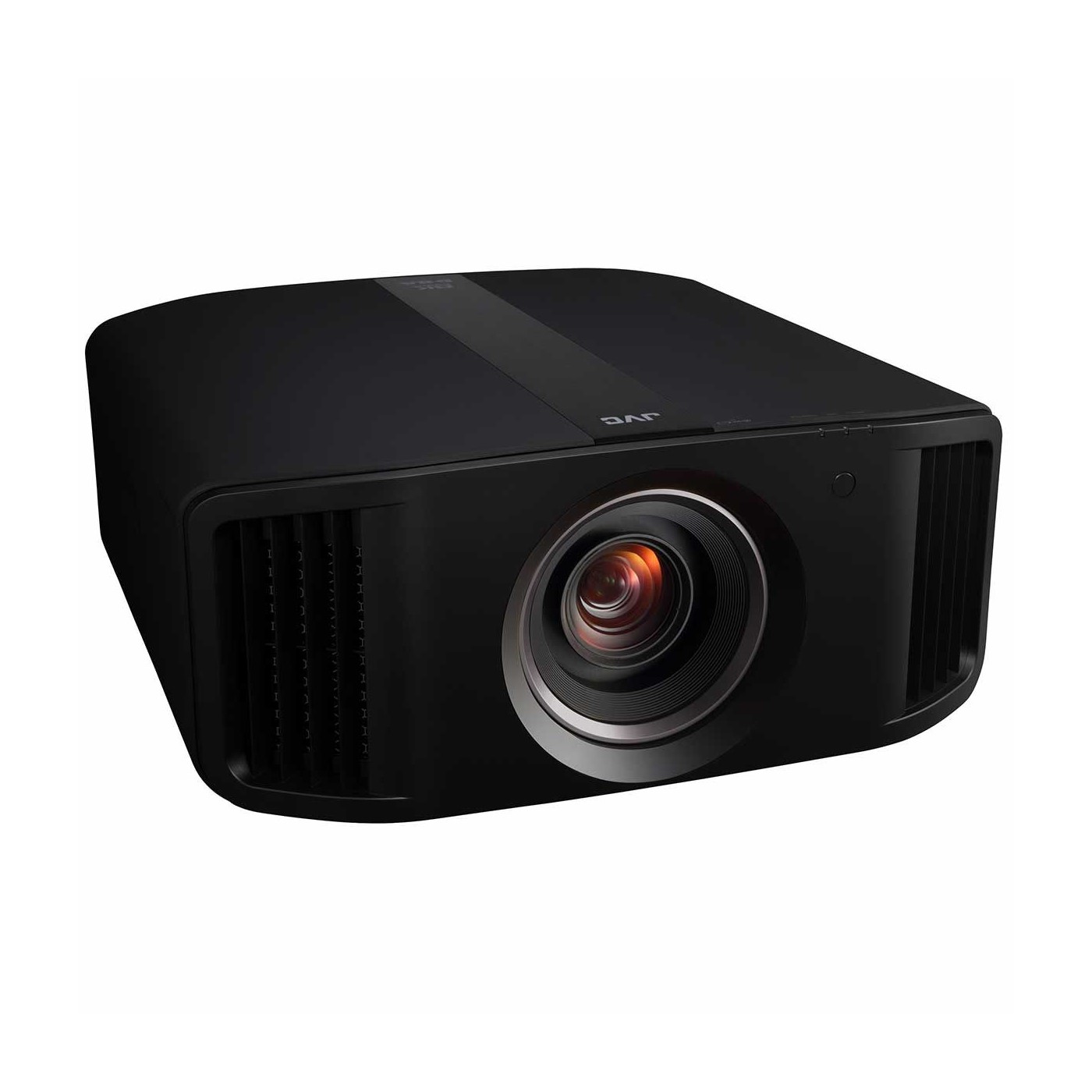

JVC’s DLA-NZ800 features the new Gen2 8K/e-shiftX with an 8K Scaling Engine to display pixel-perfect 8,192 x 4,320 images. It also boasts the BLU-Escent Laser light source combined with Gen3 native 4K D-ILA devices to deliver 2,700-lumen brightness, 100,000:1 native contrast, and infinite dynamic contrast for impressive projection even on large screens. Turn on the Gen2 Frame Adapt HDR with Theater Optimizer, Deeper Blacks, DML, and more to get the most out of HDR content. For stunning home theater projection, give the DLA-NZ800 a closer look.
Key Features
- Proprietary, Gen3, 0.69-inch Native 4K D-ILA Devices (x3)
- 2,700-lumen BLU-Escent Laser phosphor light engine
- Pixel perfect – Gen2 8K/e-shiftX with New 8K Scaling Engine featuring 4-way, multi-axis shift yields 8,192- x 4,320-pixel projection
- 100,000:1 native contrast, ∞ (infinite):1 dynamic contrast ratios deliver images brimming with reality
- 101-step Laser Light Control by slider adjustment
- 65 mm All-glass Lens with 2X zoom, 80% vertical, 34% horizontal shift
- High-contrast Optical Block
- Two 48Gbps HDMI/HDCP 2.3 inputs – 8K/60p and 4K/120p
- Gen2 Frame Adapt HDR dynamic tone mapping with Theater
Optimizer - The New Deep Black function extends dark tones with far greater
contrast - HDR10+ compatibility DML (Display Mastering Luminance) adjusts/sets the dynamic range for a better HDR experience
- Picture mode “Vivid” for projecting animated works and game CGs in SDR format
- Wide Colour Gamut with Cinema Filter (over 100% DCI-P3)
- Built with hand-selected components
- Installation Mode with 10 customizable presets
- ISF Certified, plus JVC Auto Calibration
- Clear Motion Drive for the smoothest video
- Multiple Pixel Control (MPC) for increased sharpness and detail
- Low Latency Mode is effective when displaying a high frame rate gaming content

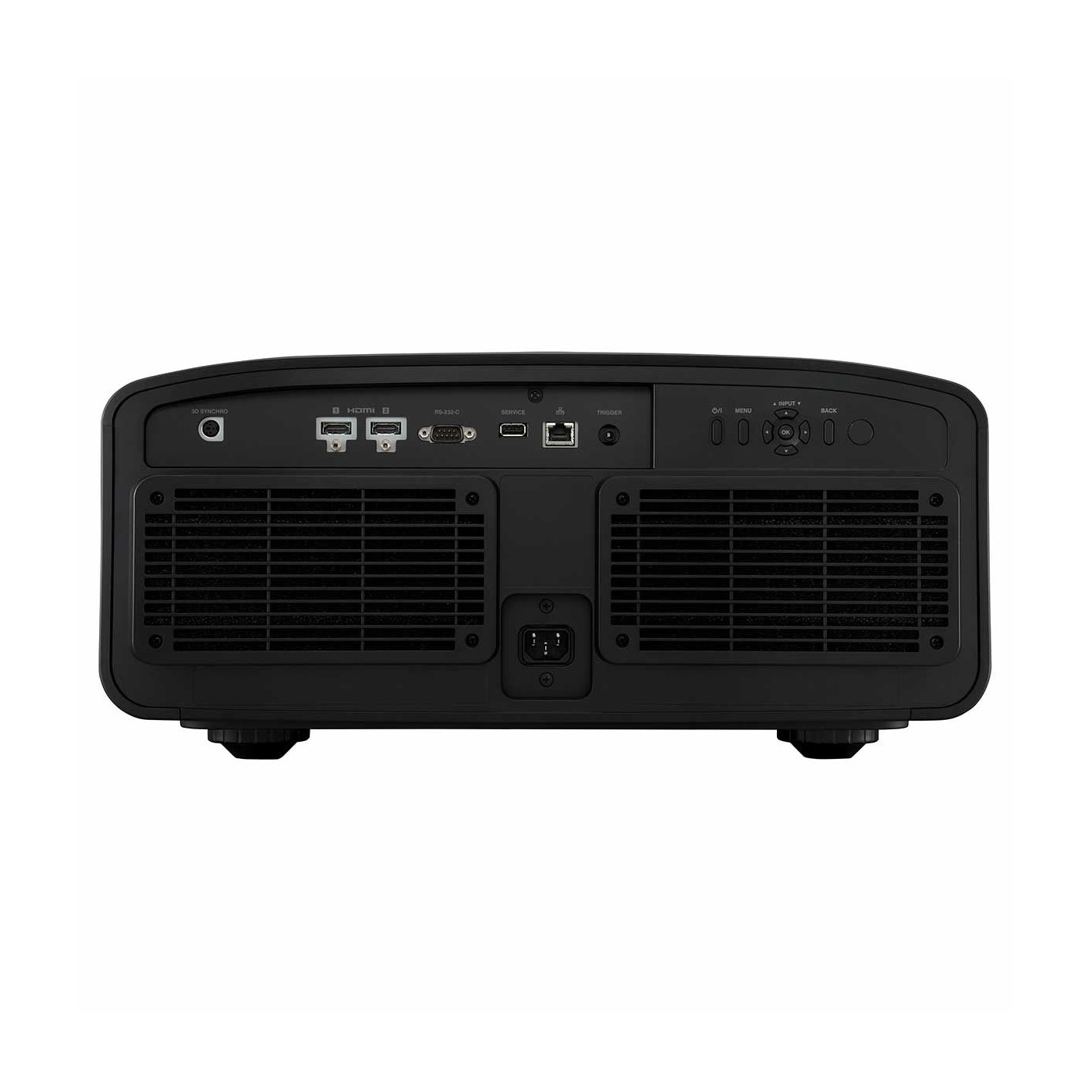

- Controls: Control4 SDDP, LAN, RS-232C, IR, 12V screen trigger out, 3D sync out

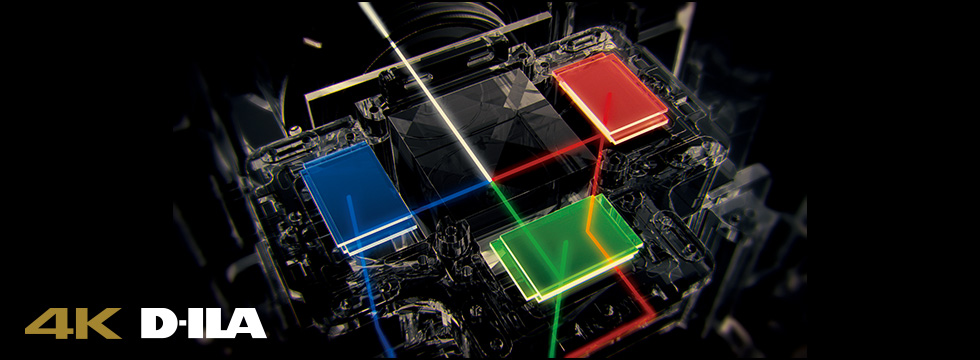

Gen3, Native 4K D-ILA Device
The third-generation 0.69-inch native 4K D-ILA device offers a native contrast ratio of 100,000:1. Improvements in the manufacturing process improved screen uniformity, enhancing image quality.

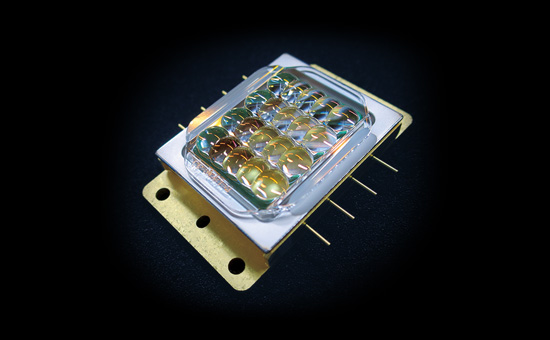

2,700lm BLU-Escent Laser
JVC’s original BLU-Escent Laser light source has been optimized to achieve an exceptional peak brightness of 2,700 lumens with a longevity of 20,000 hours. Housed in a compact casing, the laser light engine provides higher output, greater efficiency, and quieter operation, making it an excellent solution for demanding home theater installations.

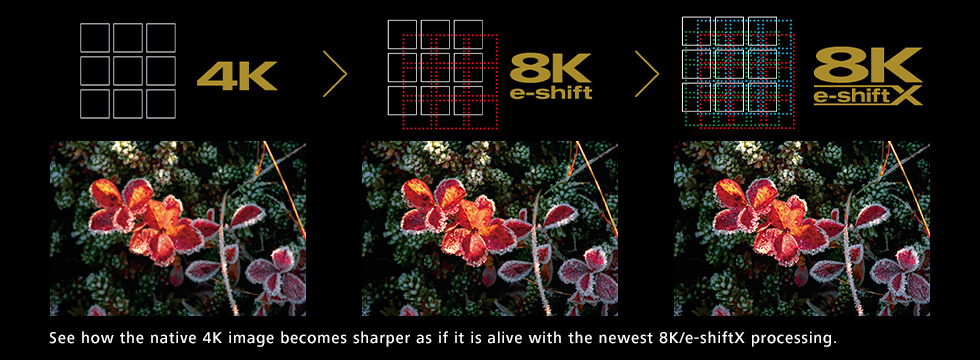

Pixel Perfect 8K Out with 8K/e-shiftX.
Whether the source is 4K or 8K, the latest Gen2 8K/e-shiftX high-resolution display technology uses a 240Hz driver with a 4-way, multi-axis shift to flash the screen four times to deliver pixel-perfect 8K resolution.
All-glass, All-aluminum Lens System.
The 65 mm lens system with a 17-element, 15-group all-glass lens projects high-resolution images to every corner of the screen while securing wide shift ranges of 80% vertically and 34% horizontally to enable faithful reproduction of distortion-free 8K images.
Gen2 Frame Adapt HDR offers Deeper Blacks and More.
The 2nd generation Frame Adapt HDR function instantaneously analyzes the different peak brightness per scene or per frame for HDR10 content and performs real-time tone mapping for optimized brightness, color, and details. When combined with each of the following modes, including the new Deep Black function, the projector detects and analyzes data contained in HDR sources to project the best of what each source has to offer:
- Deep Black function subdues tones in dark areas for more realistic darkness,
- DML (Display Mastering Luminance) adjusts/sets the dynamic range to match the image for a much better HDR experience and
- FILMMAKER MODE™ recreates picture quality that is faithful to the original master.
Picture Mode “Vivid”
Made to reproduce SDR content with a narrow dynamic range in more saturated colors with greater vividness, the Vivid mode is excellent for SDR-animated works and gaming CGs.
Dual 48Gbps HDMI Inputs – 8K/60p and 4K/120p
Full 8K input is enabled with 48Gbps 8K/60p HDMI input with HDCP 2.3.
Also, 4K120p input, which is used with low latency mode, is excellent for
high frame-rate gaming platforms.
