Product Description

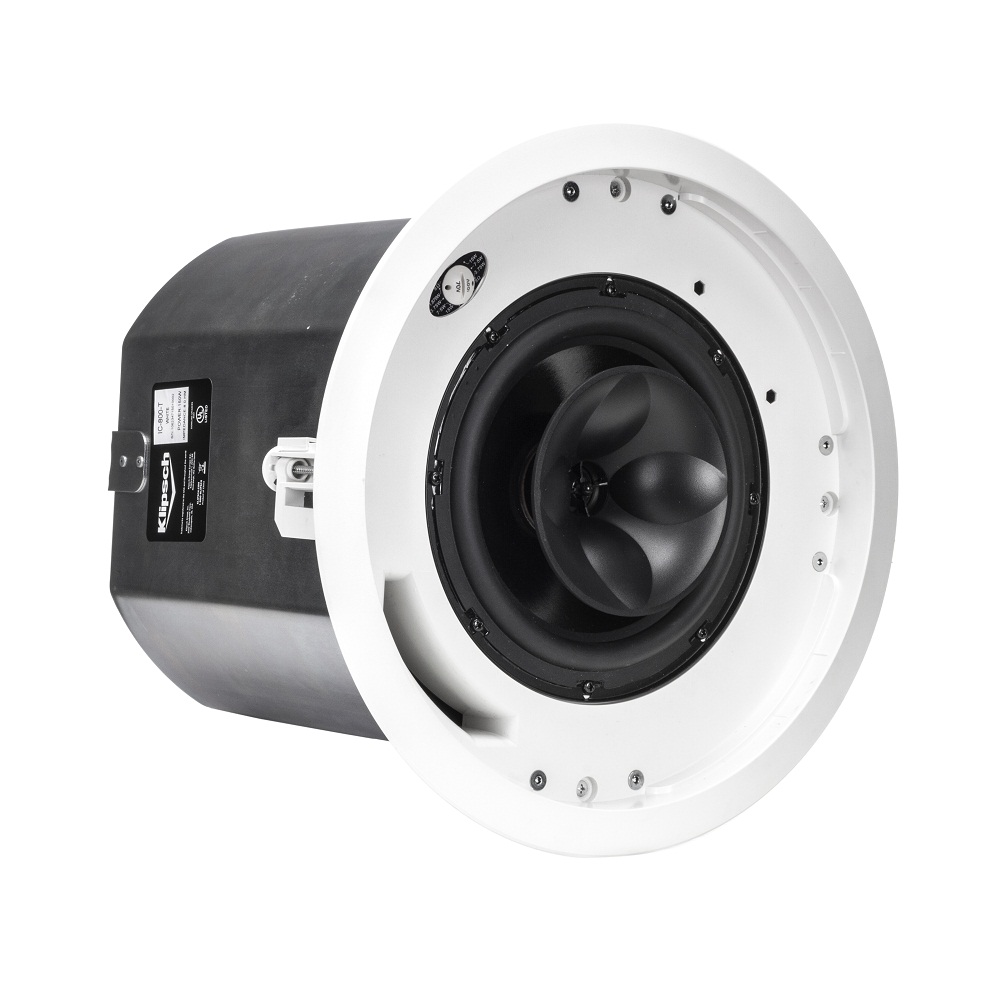

The IC-800-T packs proven materials and Tractrix® horn technology into a high
performance, install friendly, UL-2043 & 1480 certified loudspeaker with an
integrated backcan. For distributed applications, the IC-800-T features a 70/100
volt, 100 watt, multi-tap transformer. A single rotary switch for the 8-ohm bypass

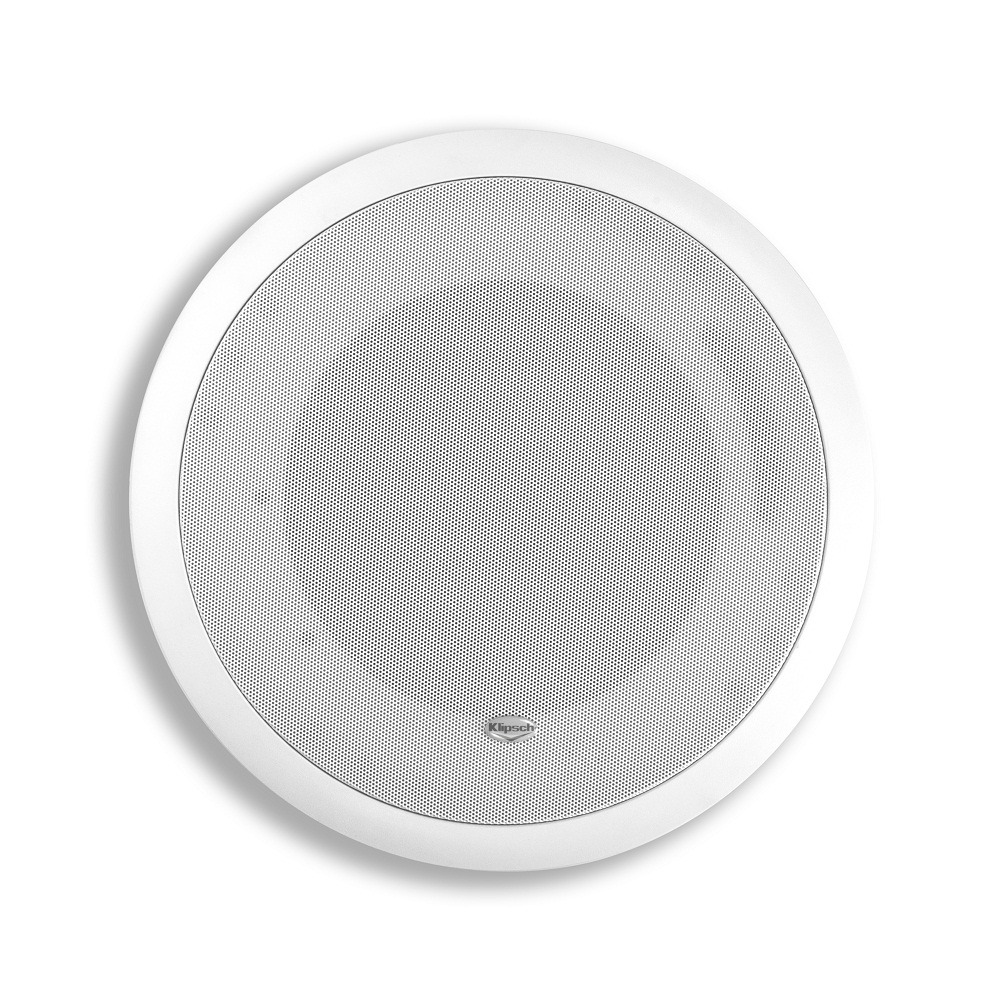

and multi-tap settings is conveniently located under the speaker grille.

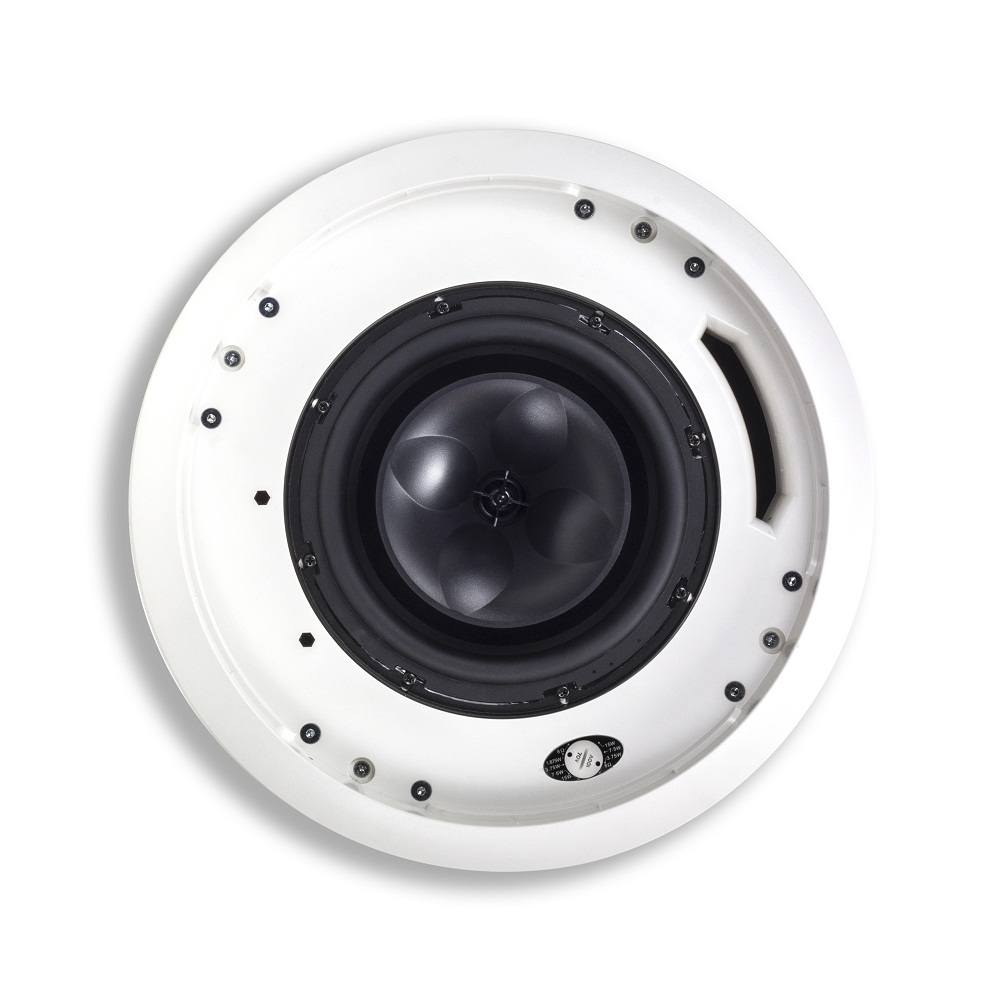

The two-way IC-800-T features an 8-inch woofer and 1 inch titanium diaphragm
compression driver on a 3.5 inch Tractrix Horn for smooth response and
exceptional off-axis performance. The Tractrix port design helps provide deeper,
extended bass with less distortion. The low insertion loss 100 watt transformer
means you’ll be able to achieve higher output levels with less compression due to
transformer saturation.
The IC-800-T is shipped complete with a tile-bridge for installation in a suspended
ceiling or wherever additional reinforcement of the ceiling material is required.
Features & Specifications
| Weight | 10 kg |
|---|---|
| General Specifications | – Frequency Response (+/- 4 Db) 49 Hz – 20 Khz
– Power Handling 100 Watts (22V) , 400 Watts Peak – Maximum Spl 111 Db Continuous , 117 Db Peak – Sensitivity 92 Db – Coverage Angle 75º – Directivity Index (Di) 8 Db – Directivity Factor (Q) 6.3 – Nominal Impedance (In 8 Ohm Bypass Mode) 6.5 Ohms , 4.2 Ohm Minimum – Components One 8″ (20.32Cm) Woofer , 1” (2.54Cm) Titanium Diaphragm Compression Driver – Input Connection Terminal Strip – Tap Settings @ 70V: 100W, 50W, 25W, 12.5W , @ 100V: 100W, 50W, 25W – Enclosure Type Bass-Reflex Via Tractrix Port – Safety Agency Rating Ul-1480, Ul-2043 – Wire Gauge Accommodated 14 Awg – Cutout Dimensions 12.625” (32.1Cm) Diameter – Mounting Depth 12.75” (32.4Cm) – Overall Depth 13.125” (33.3Cm) – Overall Width 14.15” (35.9Cm) Diameter – Thru Hole Width 12.5” (31.75Cm) – Weight 21 Lbs. (9.5Kg) – Finishes White/Paintable – Accessories Mud Ring Kit (Pn: 061347) |
| Speaker Size | 8″ |
| Choose One | Single Speaker |
