Product Description

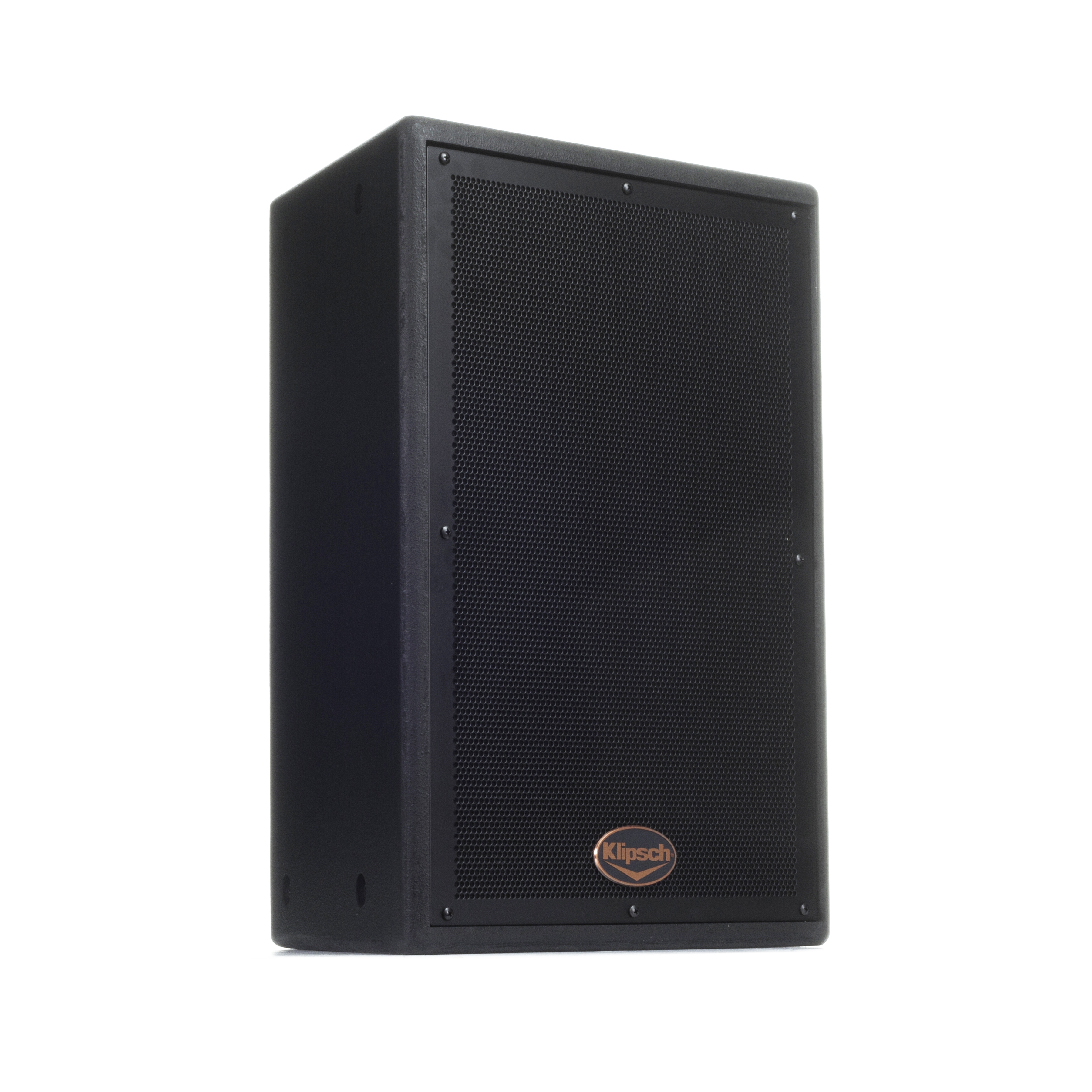

The KI-272-SMA-II two-way, multi-angle loudspeaker is a high power solution for limited space installations, where angled mounting is required. It’s perfect for angled wall, corner, ceiling, oblique angle projection or under-balcony mounting in theaters, clubs, churches and schools.
Able to hang using 12 built-in 3/8” 16-thread fly points, the KI-272-SMA-II provides the performance and reliability for which Klipsch is known.
The Klipsch KI-272-SMA-II is a Multiple angle 45 degree and 65 degree asymmetrical design two-way speaker. Perfect for angled wall, corner, ceiling or under-balcony mounting. Also designed for slanted floor or shelf use. Has a 12” (30.48cm) woofer and 1.75” (4.4cm) titanium diaphragm HF compression driver, 60º x 40º Tractrix Horn for tight pattern control, 12 suspension points, and KLIP-circuit HF driver protection devices. It comes in Black, White, Raw Birch finish.
The Klipsch KI-272-SMA-II can be used in restaurants, schools, house of worship, health clubs, AV production environments and in auditoriums.
The 3/4” MDF enclosure uses dado “lock-joint” and rabbet construction on CNC-fabricated panels to ensure resonance-free response and long-term reliability. The internal high-current passive crossover features the proprietary high-power thermal overload KLIP- circuit, which limits potential damage to the high-frequency driver. Mounting capabilities include top and bottom attachments for the optional SB-102 “U”-shaped bracket.
Features & Specifications
| Weight | 23.18 kg |
|---|---|
| Color | Black |
| Choose One | Single Speaker |
| Specifications | – Frequency Response (+/- 3 dB) 65 Hz – 20 kHz (-10 dB @ 47 Hz)
– Power Handling 300 watts (35V) – 1200 watts peak – Maximum SPL3 121 dB Continuous – 127 dB Peak – Sensitivity 100 dB – Coverage Horizontal: 40° +/- 20º 3.5 kHz – 20 kHz – Vertical: 60° +/- 20º 2 kHz – 20 kHz – Directivity Index (DI) 9 dB +/- 3 dB 2 kHz – 20 kHz Directivity Factor (Q) 7.9 – Nominal Impedance 8 ohms, minimum 4 ohms @ 146 Hz – Overload Protection KLIP Overload Protection Circuit-HF – Crossover Frequency 900 Hz – Components One K-281-EP 12″ woofer – One K-70-G 1.75” titanium compression driver on a K-604 horn – Input Connection Two point barrier strip – Mounting Options Twelve 3/8”-16 flypoints – Two 5/16”-18 threaded holes – (top and bottom) for C-bracket – Enclosure Material 3/4” 7-ply birch plywood cabinet – 1” MDF motorboard – Height 17” (43.18cm) – Width 23” (58.42cm) – Depth 15.8” (40.13cm) – Weight 51 lbs. (23.18kg) |
