Product Description

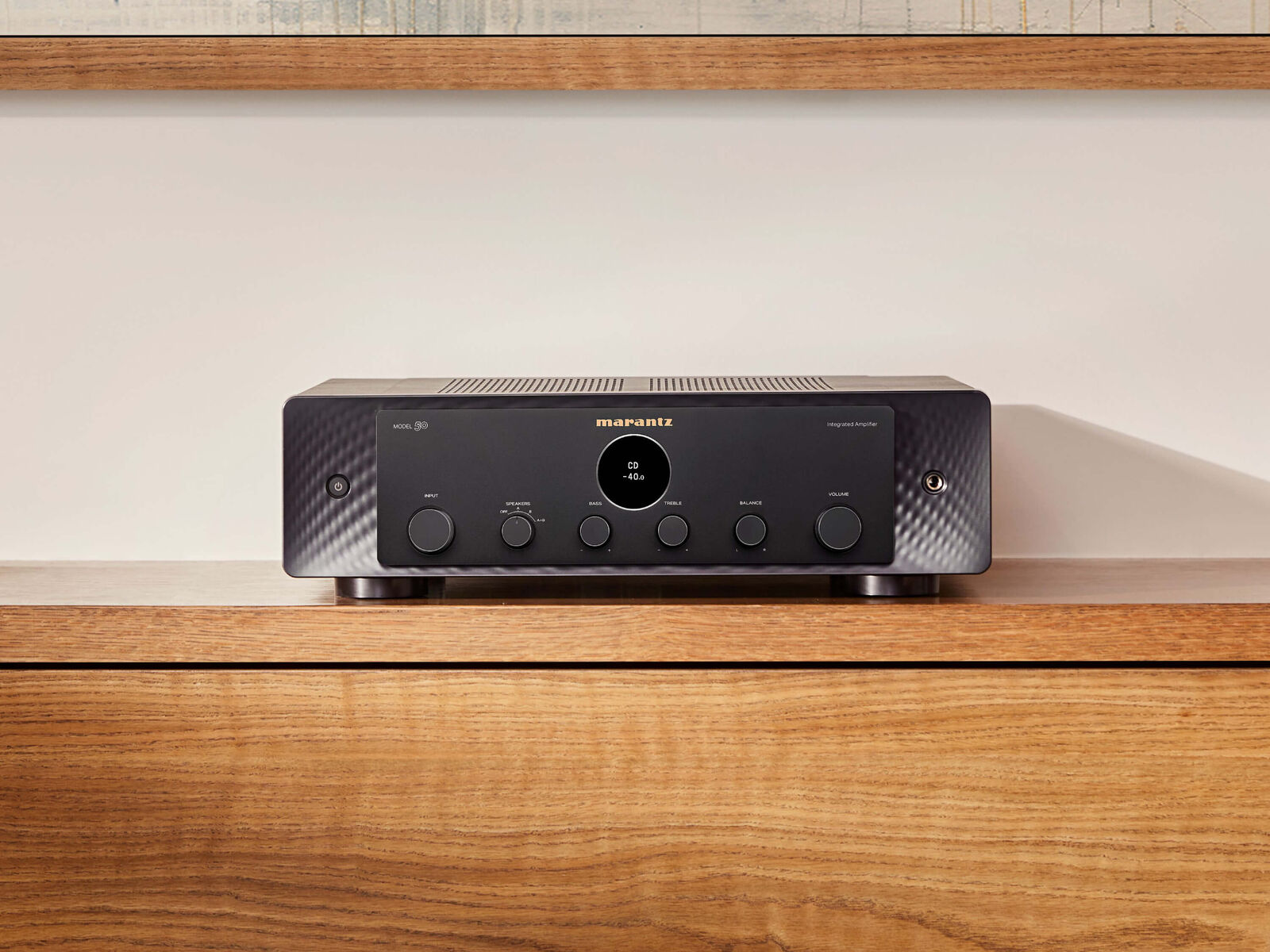

The Marantz MODEL 50 is a 2-channel integrated amplifier that delivers 70 watts per channel into 8 ohms (100 watts into 4 ohms) of Marantz current-feedback Class A/B power with HDAM-SA3 circuitry. Six analogue inputs, including a moving magnet phono stage, plus stereo pre-outs, a subwoofer output and power amp direct input make it the centrepiece of a simple stereo system or a more complex setup.
Exquisite Style
MODEL 50 is designed to be thoroughly modern yet timeless. Marantz hallmarks such as symmetry, warmth and a satisfying feel to every control carry the look of the brand’s classic amplifiers into today’s living room.
Powerful Yet Precise: 70W x 2 Class A/B
A precisely engineered Class A/B amplifier drives your loudspeakers with authority while revealing fine detail. The current-feedback design, HDAM-SA3 and HDAM-SA2 modules, a toroidal power transformer and linear drive power supply keep the sound fast, open and low in noise.
Sound Master Tuned
The Marantz Sound Master tuned MODEL 50 with careful parts selection to create the Marantz “Most Musical Sound” in your home.
Moving Magnet Phono Stage
The built-in MM phono stage brings out the nuance and tone of your records. It uses a new circuit without distortion-inducing coupling capacitors, and Marantz Musical phono EQ.
Stereo Preamp Out and Subwoofer Out
Stereo preamp outputs and a dedicated subwoofer output add flexibility: connect a subwoofer, add a power amplifier, or extend your system into more listening zones. Power amp direct input lets MODEL 50 work as the power amplifier for an AV receiver or processor, and A/B speaker outputs with Marantz SPKT-1+ terminals drive two pairs of speakers.
The Perfect Partner: CD 50n
MODEL 50 has no digital inputs, so pair it with the matching Marantz CD 50n network CD player for CDs, HEOS streaming, Bluetooth, a USB DAC and HDMI ARC TV sound. Both are 442 mm wide and share the same remote control.

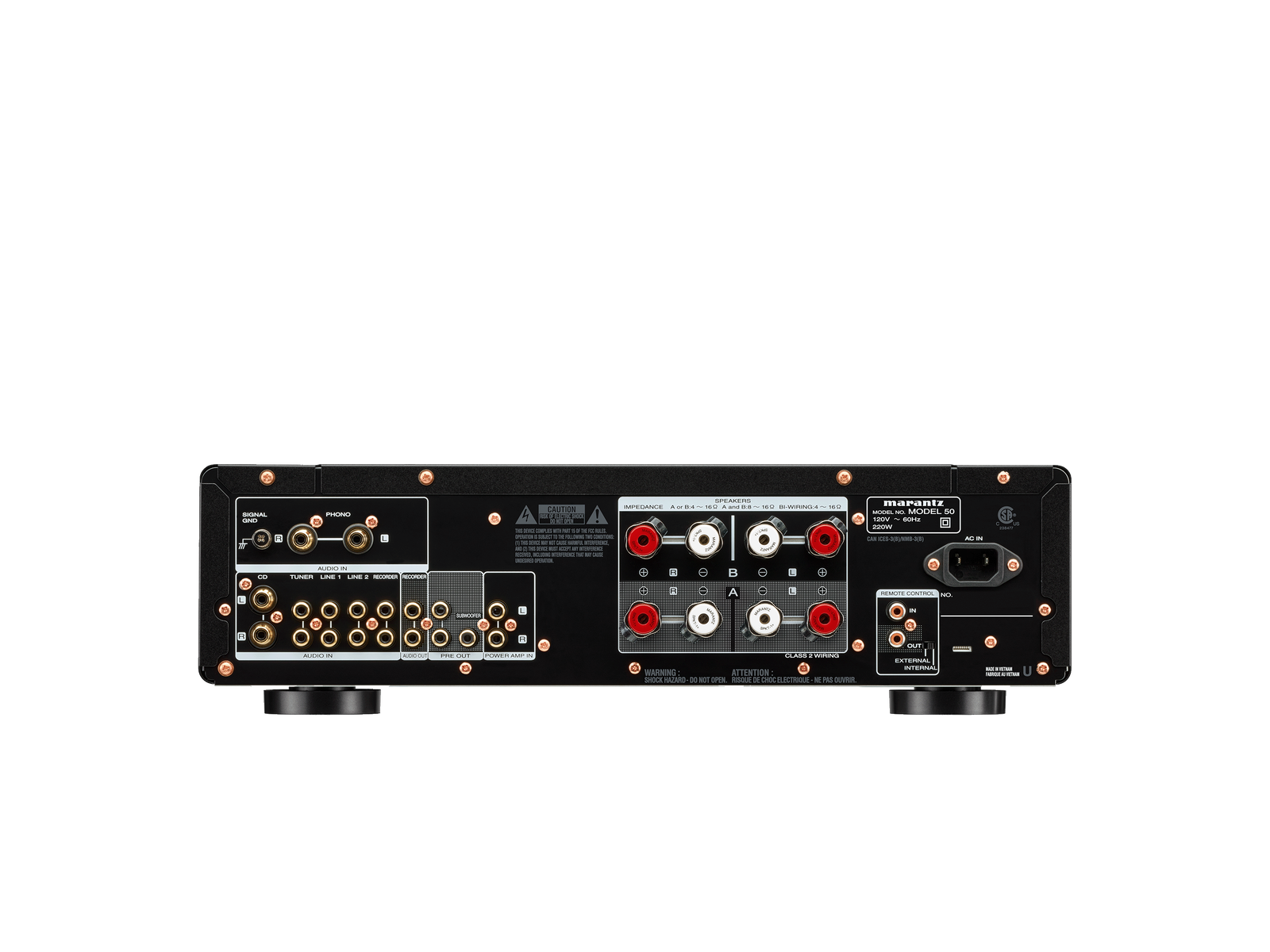

Back Panel
Specifications
| Model | MODEL 50 |
| SKU | MODEL50 |
| UPC | 747192141110 |
| Finish | Black |
| Channels | 2 |
| Power output | 70W x 2 (8 ohms), 100W x 2 (4 ohms) |
| Amplifier | Class A/B, current feedback topology |
| HDAM | HDAM-SA3, HDAM-SA2 |
| Power transformer | Toroidal |
| Analogue inputs | 6 (including MM phono) |
| Phono input | Moving magnet (MM) |
| Digital inputs | None |
| Outputs | Stereo pre-out, subwoofer out, headphone out |
| Power amp direct in | Yes |
| Speaker outputs | A / B, Marantz SPKT-1+ terminals |
| Tone controls | Bass +/-10 dB at 50 Hz, treble +/-10 dB at 15 kHz, balance |
| Source direct | Yes |
| Frequency response | 5 Hz – 100 kHz |
| Total harmonic distortion | 0.02% |
| Damping factor | 100 |
| Signal-to-noise ratio | 116 dB high level (2 V input), 87 dB MM phono, 125 dB power amp direct in |
| Input sensitivity | High level 185 mV / 16 kohm, MM 1.4 mV / 47 kohm, power amp direct in 1.5 V / 15 kohm |
| Display | Low-noise OLED |
| Remote control | RC003PMND (system remote) |
| D-Bus | Yes |
| Power consumption | 220W (standby 0.3W), auto power off |
| Dimensions (W x D x H) | 442 x 431 x 130 mm (17.4" x 17.0" x 5.1") |
| Weight | 14.2 kg (31.3 lbs) |
| Warranty | 5 years (Marantz Canada) |
Also available in Silver Gold.
