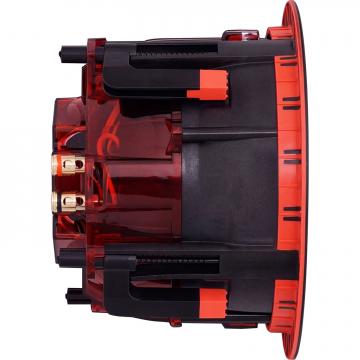

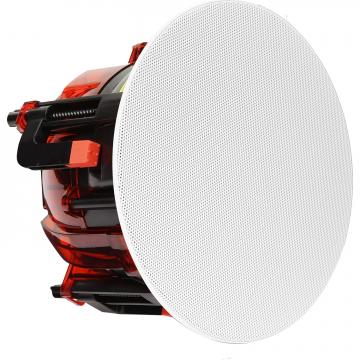

SpeakerCraft AIM5 Three Series 2 In-Ceiling Speaker – Black w/ White Grille (Each)


Lowesst Price Guaranteed Free Shipping
  • FamilyAIM Series 2
  • Woofer Size5 (Inches)
  • Frequency Response40Hz-20kHz
  • Impedance8 (Ohms)
  • Power Handling125 (Watts)
  • Sensitivity88 (dB)
  • Dimensions8″ [203 mm] Diameter x 4-7/8 [124 mm] Depth
  • Hole Cutout Dimensions6-5/8″ [168 mm] Diameter
Pay Over Time With RBC Payplan (Financing Plan)
SKU: AIM253 Categories: , , , , Product Condition: New Brand:

Product Description

AIM5 Three Series 2 – Overview

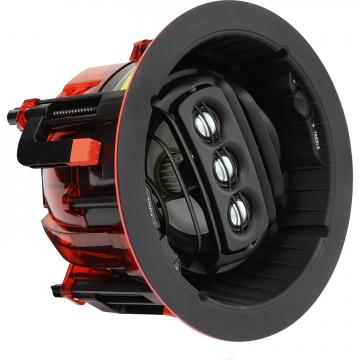

The SpeakerCraft AIM 5 THREE Series 2 speaker has a 15 degree pivoting 5 1/4” aluminum cone woofer, 15 degree pivoting & 359 degree rotational ARC tweeter array incorporating (3) – 5/8” aluminum /magnesium dome tweeters.

The Legend. ReCrafted.

More revolutionary than evolutionary, SpeakerCraft AIM Series 2 is 100% re-crafted to support sophisticated installations, demanding sonic performance, and advanced object-based surround audio platforms such as Dolby Atmos®, Auro-3D®, and DTS:X®. The re-crafting effort addresses every aspect of the speaker, from front to back, resulting in a sound solution you’ll have to hear to believe.

Defies All Conventions and Industry Norms

Inspired by the line arrays used in concert venues, the high frequency array in the AIM Series 2 family features up to four tweeters oriented along a pivoting arc. They are fed in phase to constructively interfere with each other, thus sending high frequency sound waves farther into the listening area than traditional loudspeakers, and with a more carefully defined sound output pattern as well.

Sound Placement Enhances the Experience

A typical single-tweeter “point source” in an architectural speaker radiates a very wide soundfield. This actually creates multiple reflections from the room’s periphery, presenting the listener with multiple delayed and out-of-phase versions of the original sound which reduce the clarity of that sound. The ARC Tweeter Array significantly enhances speech intelligibility by narrowing the sound output pattern in a manner that lets integrators precisely direct the soundfield to the listening area. By arraying the transducers closely together along a single arc, AIM Series 2 minimizes the disruption to the horizontal off-axis frequency response.
