Optoma WPS PRO Wireless Presentation System

Product Description

Collaborative wireless presentations

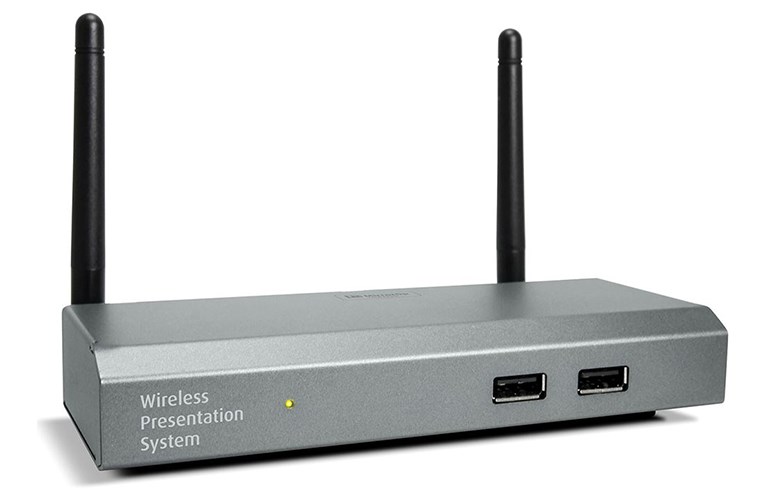

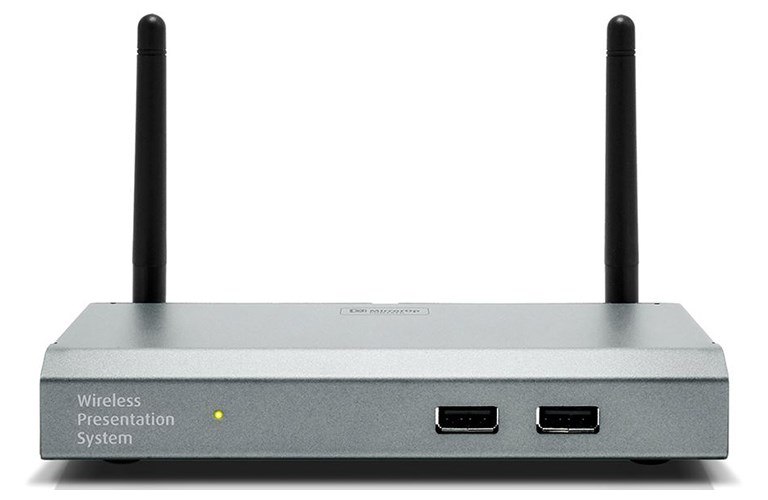

The Optoma WPS PRO Wireless Presentation System enables multiple users to share their presentations in Full HD 1080p from a laptop to a projector with ease. Presenters can even project photos and view documents from a mobile device. The WPS PRO lets you collaborate and share content on a big screen wirelessly. It is a fullly-equipped presentation solution with a robust library of features that enables up to 64 participants to share content via 4-way split screen in a corporate or educational environment. WPS Pro connects to any HDMI or VGA-enabled Optoma Projector to deliver big, beautiful, and crisp presentations while the Conference Control function allows the moderator complete control of the presentation session

.

Share any application

Users can share PowerPoint Presentations, Word Documents, Excel Spreadsheets, videos and images directly from a SmartPhone or Tablet via the MirrorOp Presenter App for iOS and Android. WPS IPRO2 software enables Windows and Mac users to Mirror the Desktop to share any application including the web browser with session attendees.

In addition to sharing content, the moderator or any of the 4-way split screen participants can utilize the Annotations feature of the MirrorOp Presenter iOS and Android App. The Annotations feature allows the presenter and any of the 4-way split-screen participants to collaborate in real-time during the presentation session with the ability to write and draw using various colors and shapes.



Full HD 1080p

1080p resolution gives you sharp and detailed images from HD content without downscaling or compression; perfect for watching movies, viewing photos and documents.

Photo viewer

View photos stored on a device directly on your projector or display wirelessly. Perfect for sharing those vacation photos with family and friends.

Document viewer

Presenters can wirelessly share and present word, excel, PowerPoint and PDF documents and photos stored on a mobile device directly on a projector or display.

Cloud storage

Access files and display content stored on Dropbox, Google Drive and other cloud storage services.

Built-in web browser

Browse and surf the internet on a big screen.

Specifications

Model: WPS PRO Specifications
Description	Wireless Presentation System
Audio Support	Yes
System Latency	1ms
Antenna	2x Dipole 2dBi
Operating Frequencies	2.4GHz
Power Supply	5V-2.6A
Range	up to 100m
Wireless technology	IEEE 802.11 b/g/n
Wireless security	WEP, WPA, WPA2-PSK
Transfer rate	300Mbps
OS compatibility	Windows XP/Vista/7/8 Mac OS X 10.7+ iOS 3.2+ Android 2.4+
Desktop software	WPS
Mobile software	MirrorOp Presenter MirrorOp Galaxy SidePad
Supported output resolution	SVGA, XGA, WXGA, WXGA+, UXGA, 720p, 1080i, 1080p

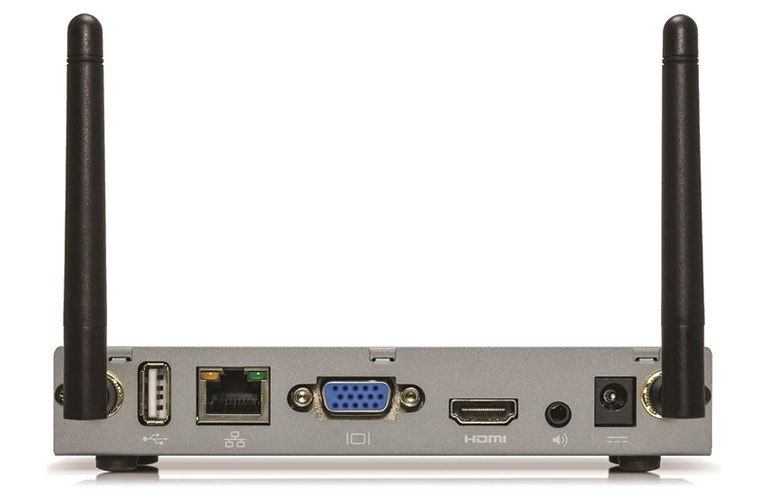

Input	RJ45, 3x USB-A
Output	HDMI, VGA, Audio 3.5mm

Optoma WPS PRO Product Specifications Summary:

(for full specs please see the full specs tab or the data sheet)

General Attributes
Product Weight	0.60 LBS
Country of Origin	China
Warranty	3 YEARS
Product Height	1 IN
Product Width	5.87 IN

Projection System DLP
Native Resolution 1080p (1920 x 1080)
Brightness* 2200 ANSI Lumen
Contrast Ratio Contrast Ratio (FOFO) : 10000:1
Display Color (ANSI) : 500:1
Display Color 1.07 Billion Colors
Lens F= 2.6-2.78, f=10.2-12.24mm
Aspect Ratio Native 16:9 (5 aspect ratio selectable)
Throw Ratio 0.69-0.83 (65.7″@ 1M)
Image Size (Diagonal) 38″-300″
Zoom Ratio 1.2:1
Lamp Type 240W
Lamp (Normal/Economic Mode)* 3500/5000/6000 hours
Keystone Adjustment 2D, Vertical & Horizontal +/- 20 degrees
Projection Offset Vertical 105%~±5%
Resolution Support VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking
Horizontal Frequency 15K-102KHz
Vertical Scan Rate 23-120Hz
Interface Video Compatibility NTSC, PAL, SECAM, SDTV Computer in (D-sub 15pin) x 1
HDMI x 2
MHL x 1 (shared with HDMI2)
Composite Video in (RCA) x 1
Component Video in x 1
Audio in (Mini Jack) x 1
Audio L/R in (RCA) x 1
Audio out (Mini Jack) x 1
Chamber Speaker 10W x 1
USB (Type A) x1 (for 1.5V power supply)
USB (Type Mini B) x1 (for service)
RS232 (DB-9pin) x 1
DC 12V Trigger x 1
Dimensions(W x H x D) 312x104x244 mm
HDTV Compatibility 480i, 480p, 576i, 567p, 720p, 1080i, 1080p
Video Compatibility NTSC, PAL, SECAM, SDTV
Weight 2.85KG
Audible Noise 31/28 dBA (Normal/Economic mode)
Power Supply AC100 to 240 V, 50 to 60 Hz
Power Consumption 353W/110V (typical), Standby < 0.5W
On-Screen Display Languages Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages)
Accessories (Standard) Remote Control w/ Battery
Power Cord (by region)
User Manual CD
Quick Start Guide
Warranty Card (by region)
Lens cover
Accessories (Optional) Spare Lamp Kit P/N: 5J.J9H05.001
Ceilling Mount P/N: 5J.J4N10.001
3D Glasses P/N: 5J.J7L25.002
Carry Bag P/N: 5J.J3T09.001
Wireless FHD Kit P/N: 5J.J9H28.A01
